PIR-622 Wide-Angle Sensor
Home / Products / PIR Sensors / PIR-622 Wide-Angle Sensor
Model No : PIR-622
Functions & Characteristics:

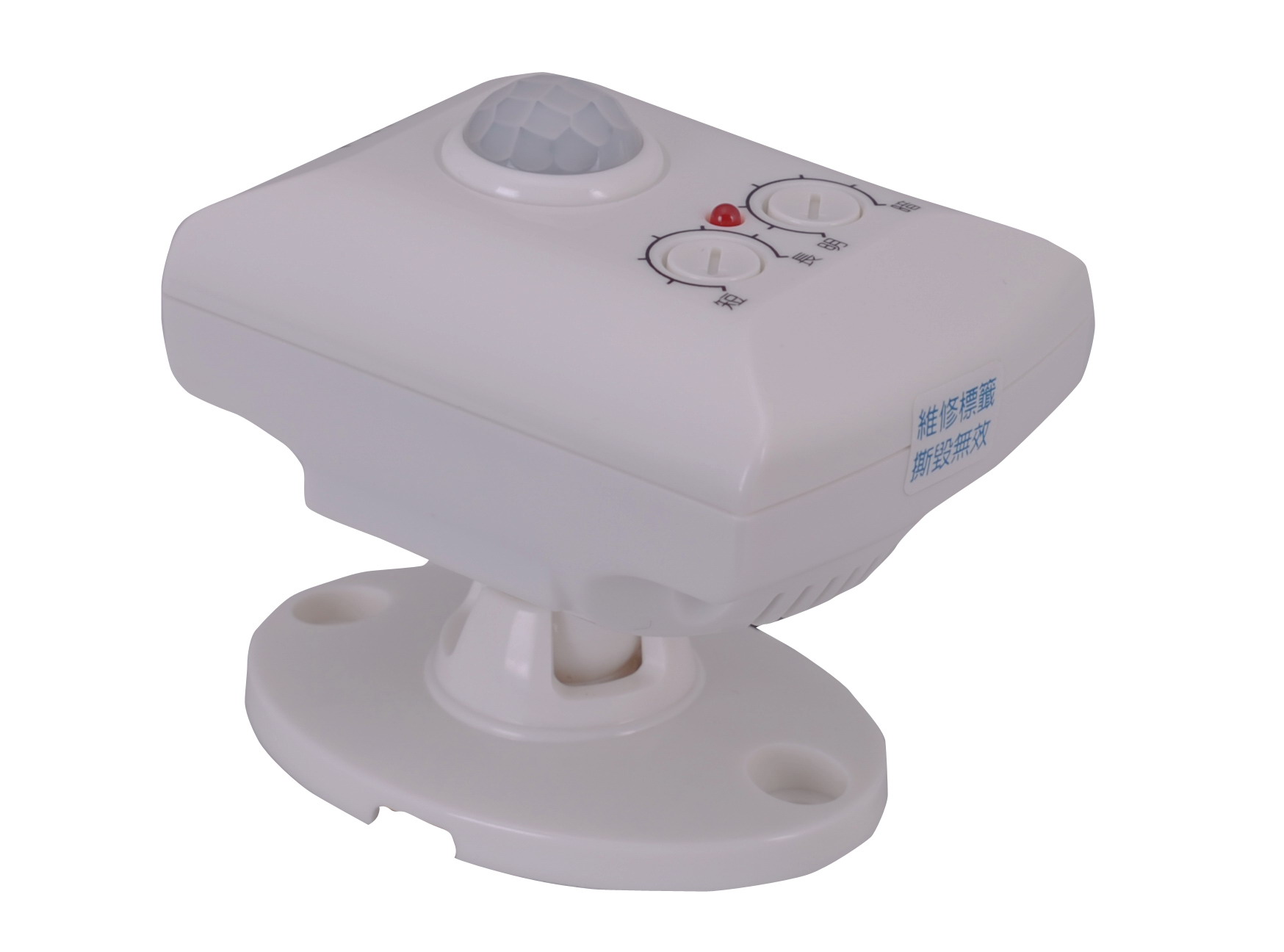

- All direction rotating sensor, wide-angle sensor can be adjusted direction freely. And it is suitable to the decoration and has beautiful appearance.
- Special circuit design which can resist spark, surge and noise.
- PIR-622 Wide-Angle Sensor: Time, day & night can be adjusted.
- Combine with any lamp, such as Incandescent lamp, Fluorescent lamp, energy saving lamp and LED lamp.
- Application: Hallway, door gate, corridor, stairs, garage, balcony and basement …etc.
Specification:
| Model No. | PIR-622 Wide-Angle Sensor |
|---|---|
| Power Supply | AC100~240V 50/60HZ |
| Max. Load | Incandescent lamp: 600W Fluorescent lamp: 200W Energy saving lamp: 240W and LED lamp. Fuse: 3A |
| Power Consumption | standby: 220V-35mA/110V-17mA |
| Adjusting Angle | Right & Left: 60°，Up & Down: 50° |
| Sensing Angle | |
| Sensing Distance | 8m (at 25°C ) |
| Off Delay time | 15~600 sec. |
| Warm-up Procedure | Install in the daytime: the lamp will light for 5 sec. after the charge. Install in the nighttime: the lamp will light for about 12 sec. then shut off automatically after energized. |
| Dimension | 7.6× 5.8× 6.2cm |
| Weight | 60g |
| Wiring | 2IN/2OUT |

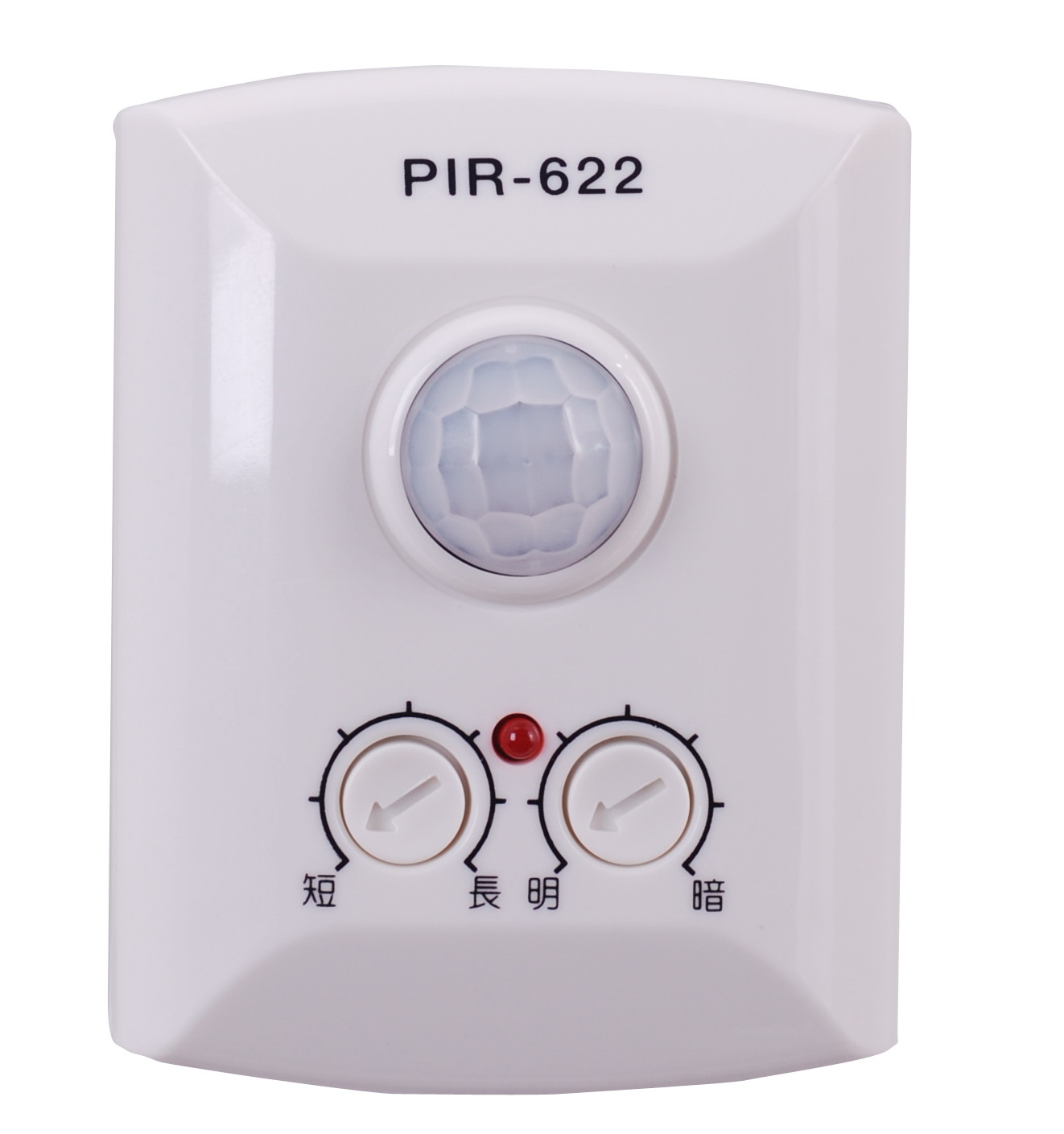

Instructions( Three adjustable knobs provided as described below):
Adjust for day& night.
Day: The sensor operates whenever people arrive.
Night: It only operates at dark surroundings.
Adjust for off delay time.
Short time: about 15 seconds.
Long time: about 600 seconds
Sensing Range and Distance:

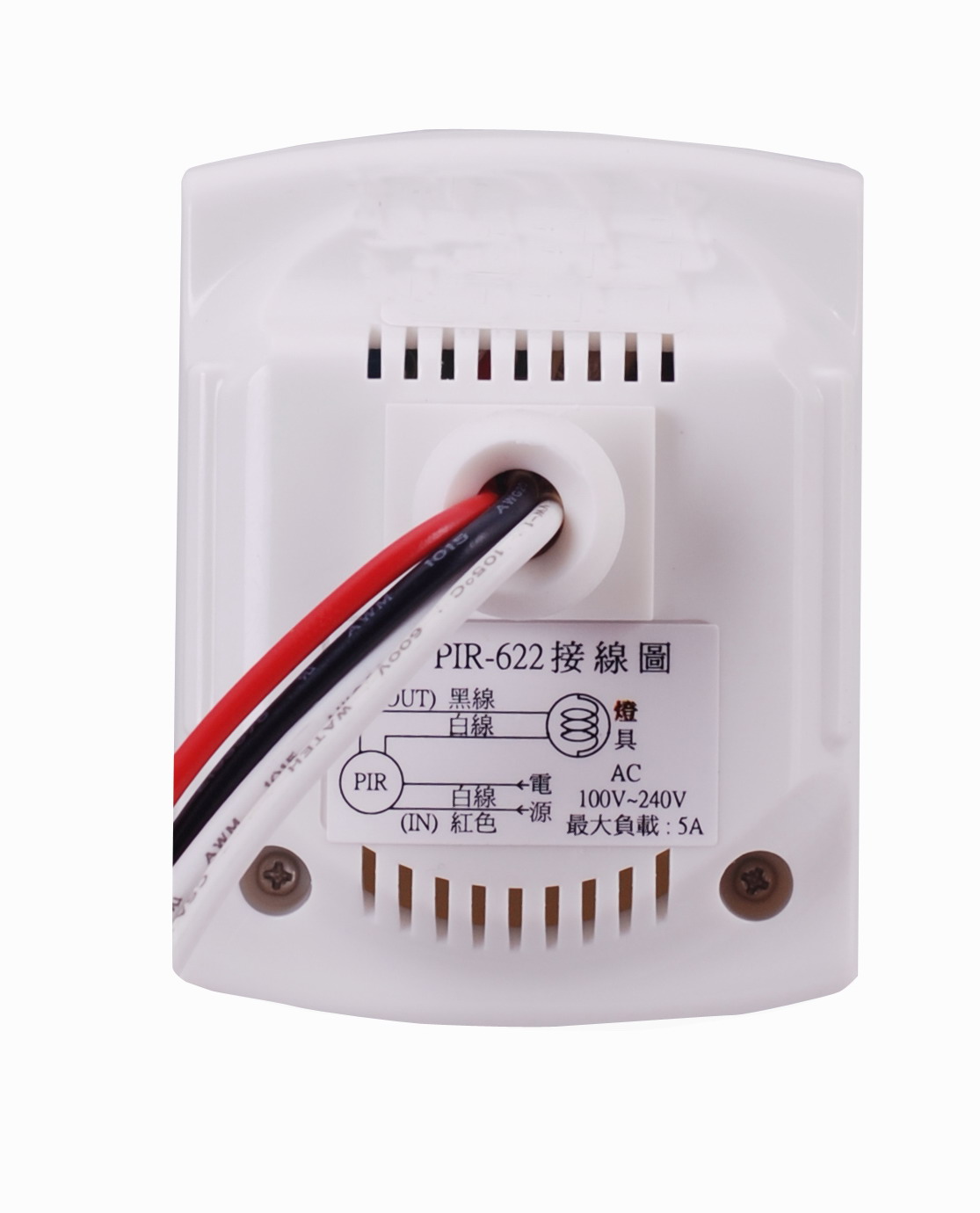

Wiring Diagram:
Application place:
