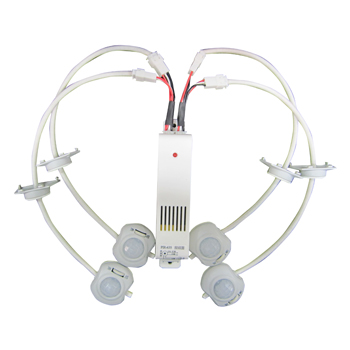

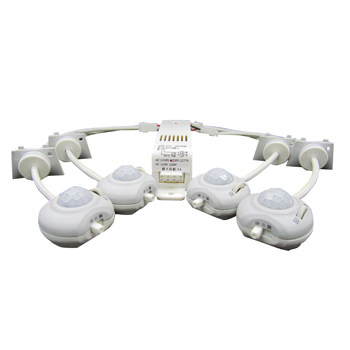

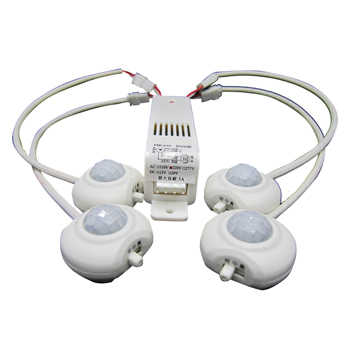

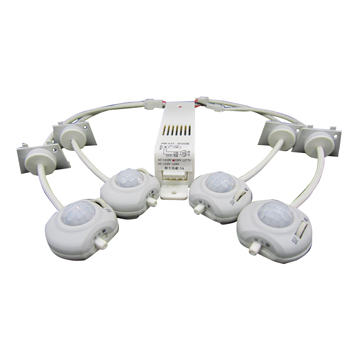

PIR-635 Multi Sensor
Home / Products / PIR Sensors / PIR-635 Multi Sensor
Model No : PIR-635
Functions & Characteristics:
- With our unique design, our PIR-35 could support 4 sensors simultaneously. By pulling out the connecting cables, the sensor could be extended to some blind spots that the normal sensor could not reach and work independently with high performance.
- Special circuit design can resist spark, surge and noise.
- Time, day & night can be adjusted and it can be installed on the wall and the ceiling.
- Combine with any lamp, such as incandescent, fluorescent, energy-saving and LED lamp.
- Multi Sensors Application: Hallway, door gate, corridor, stairs, garage, balcony and basement & etc.
Specification:
| Model No. | PIR-635 Multi Sensors |
|---|---|
| Power Supply | AC110/220V ; 50/60HZ |
| Max. Load | Fluorescent lamp: 240W Energy saving lamp: 200W Incandescent lamp: 600W |
| Power Consumption | standby: <25mA |
| Adjusting Angle | All direction |
| Sensing Angle | R & L:<130°, Up & Down:<90° (at 25°C) |
| Sensing Distance | 8m (at 25°C ) |
| Off Delay time | 6~600 sec.(Adjustable) |
| Warm-up Procedure | Lamp will light for about 6~15 seconds after then automatically shut off after the charge. |
| Dimension | 12.4 × 2.6 × 2.8cm |
| Weight | 120 g |
| Wiring | 4 wiring including fuse (250V/ 5A) |
Instructions( Three adjustable knobs provided as described below):
- When turn on the power, the lamp will light for 6~15 seconds then automatically shut off base on “暗/ 中/ 明”.
- When turn to “明”mode: under 1000LUX, the lamp light up when people come close to sensing range, then the lamp will auto shut off within the off delay time.
- When turn to “中”mode: under 10LUX, the lamp light up when people come close to sensing range, then the lamp will auto shut off within the off delay time.
- When turn to “暗”mode: under 3LUX, the lamp light up when people come close to sensing range, then the lamp will auto shut off within the off delay time.
PIR-635 Multi Sensor Accessories:
One model and 2 x double sense lines, If you need to increase length or sensor line, you can choose the extend line (limit: < 50M) or connector, KS-803.

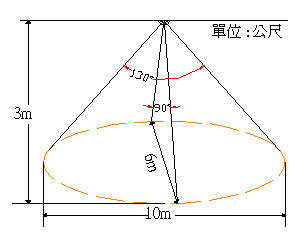

Sensing Range and Distance:
Wiring Diagram:
