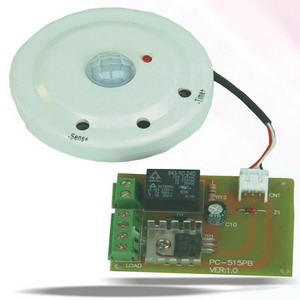

PIR-515 Split Type Sensor
Home / Products / PIR Sensors / PIR-515 Split Type Sensor
Model No : PIR-515
Functions & Characteristics:
- The lamps lights up when people come close to its sensing range. The lamps will shut off within the off delay time when people leave beyond the sensing distance. It is very energy-saving, convenient and safe..
- Special circuit design which can resist spark, surge and noise.
- Voltage is DC24V and it can apply on the apparatus and alarm.
- Two control systems - one for light and one can send message.
- Time and distance can be set and it can be installed on the wall and the ceiling.
- Application: trailer, apparatus, alarm and movable toilet.
Specification:
| Model No. | PIR-515 Split Type Sensor |
|---|---|
| Power Supply | DC24V |
| Max. Load | 100W |
| Power Consumption | standby：26.5mA |
| Sensing Angle | R&L:<130 °, UP&DOWN <90 °(at 25°C) |
| Sensing Distance | 8m (at 25°C ) |
| Off Delay time | 6~270 sec. Sensor is not active about 5 sec after light off |
| Warm-up Procedure | Light flashes 3 times after been electrified. |
| Dimension | 7.2 x7.2 x 3.7cm |
| Weight | 115g |
| Wiring | DC24V IN/OUT |
Instructions( Three adjustable knobs provided as described below):
Adjust for off delay time.
Turn (-): about 6 seconds. Turn (+): about 270 seconds.
Adjust for sensitivity
Turn (-): short sensing distance. Turn (+): long sensing distance.
Sensing Range and Distance:
Wiring Diagram:

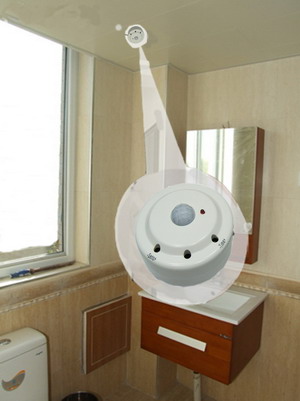

Application place:
