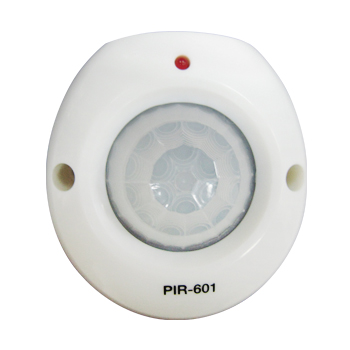

PIR-601M Big Lens Sensor
Home / Products / PIR Sensors / PIR-601M Big Lens Sensor
Model No : PIR-601M
Functions & Characteristics:
- The lamps will light up when people enter its sensing range. The lamps will shut off within the off delay time when people leave beyond the sensing distance. It is very energy-saving, convenient and safe.
- Mini type sensor-the size of PIR-601M is only 1/2 of the similar products.
- Special circuit design can resist spark, surge and noise.
- Time, day& night and distance can be adjusted and it can be installed on the wall and the ceiling.
- Combine with any lamp, such as Incandescent lamp, Fluorescent lamp, energy saving lamp and LED lamp.
- Application: Hallway, door gate, corridor, stairs, garage, balcony or basement.
Specification:
Big Lens Sensor
| Model No. | PIR-601M Big Lens Sensor |
|---|---|
| Power Supply | AC100~240V 50/60HZ |
| Max. Load | Incandescent lamp: 600W Fluorescent lamp: 200W Energy-saving lamp: 240W and LED lamp. Fuse: 3A |
| Power Consumption | AC220V/35mA ; AC110V/17mA |
| Sensing Angle | R&L:< 130°, UP& DOWN: < 90° (at 25°C) |
| Sensing Distance | 8m (at 25°C ) |
| Off Delay time | 6~600 sec |
| Warm-up Procedure | The lamp will light for about 20 seconds then automatically shut off after energized |

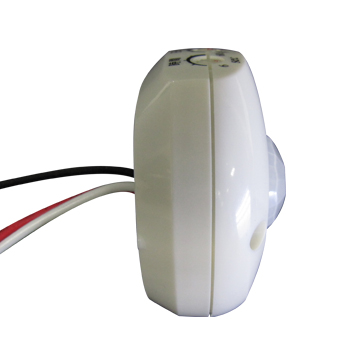

| Dimension | 6.8×7.2×3.8cm |
| Weight | 62 g |
| Wiring | 3 Wiring lines (White line for common ground) |

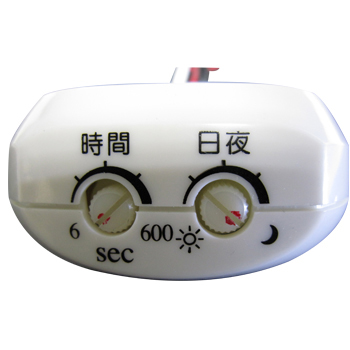

Instructions( Three adjustable knobs provided as described below):
 |
Adjust for day& night. Sun: The sensor operates when people arrive no matter daytime or night. Moon: It only operates at dark surroundings. |
 |
Adjust for off delay time. 6: about 6 seconds. 600: about 600 seconds |
Sensing Range and Distance:
(At 25°C)

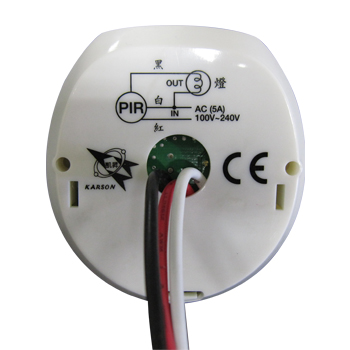

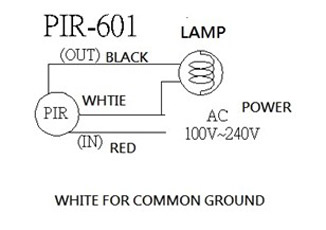

Wiring Diagram:

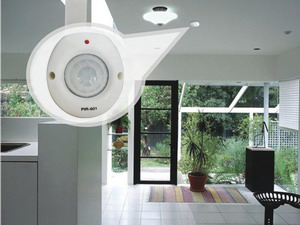

Application place:
