KS-801&KS-802&KS-803 Sensor line
Home / Products / PIR Sensors / KS-801&KS-802&KS-803 Sensor line
Model No : KS-801, KS-802, KS-803
Functions & Characteristics:
- It has the day/ night modes can swift. The lamps will light up when people arrive and will be off after people leave. It can apply to the Illumination control and equipment test.
- It can combine with motherboard, such as burglar alarm, alarm bell, corridor light, basement, garage, door gate and hallway.
Specification:
| Model No. | KS-801 | KS-802 | KS-803 |
|---|---|---|---|
| Power Supply | DC3~5V | DC5V | DC5V |
| Output voltage | VCC-0.7 | 5V | 5V |
| Output current | 10mA | 10mA | 10mA |
| Power Consumption | 0.5mA | 0.5mA | 0.5mA |
| Sensing Angle(at 25°C) | R & L:< 130° Up & Down:< 90° |
R & L:< 130° Up & Down:< 90° |
R & L:< 130°, Up & Down:< 90° |
| Sensing Distance | 8m (at 25°C ) | 8m (at 25°C ) | 8m (at 25°C ) |
| Off Delay time | Without off delay time | 10 sec.(night) 90 sec.(night) 330 sec.(night) |
6~600 sec. |
| Dimension | 3.2 x2.8x2.4cm | 4×2.9×2.8cm | 4×2.9×2.8cm |
| Illumination | It isn’t affected by day light or night. The lamps lights up whenever people arrive | Under 3LUX: sensor is active over 30LUX:sensor not active |
Short : over 3LUX Mid.: over 30LUX-sensor not active Long : sensor is active all day. |
| Weight | 12g | 19g | 19g |
| Wiring | VCC, OUT, GND, CDS | VCC, OUT, GND | VCC, OUT, GND |
| Operating Temperature | -5°C ~ 45°C < 90% | -5°C ~ 45°C < 90% | -5°C ~ 45°C < 90% |

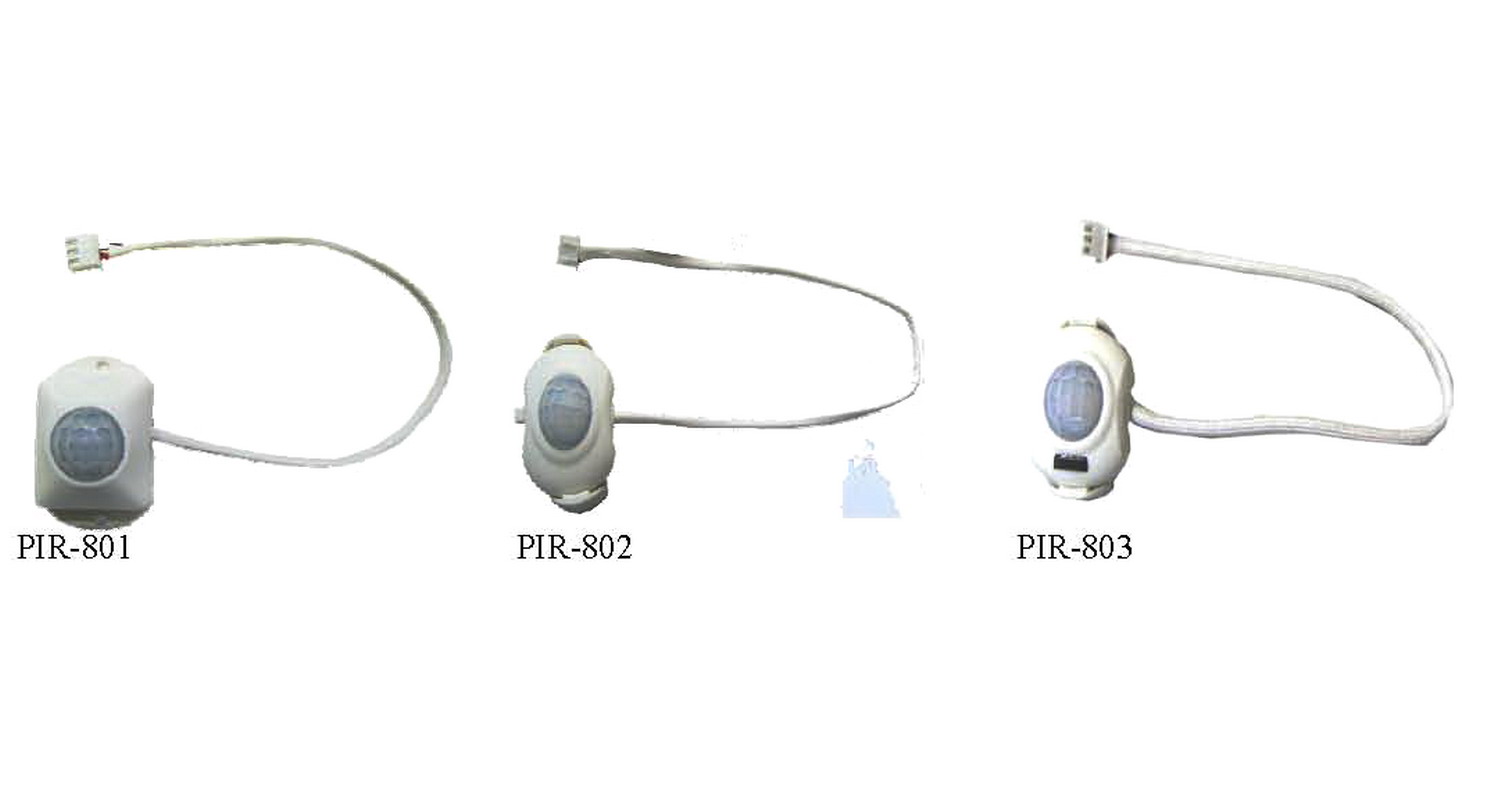

| Picture |
Instructions( Three adjustable knobs provided as described below):
- KS-801 Line Sensor: It only offers the signal output. It acts when people move and inacts when people don't move.
- KS-802 Line Sensor: It provides signal output and after-sensing, it has three off delay time to adjust.
- KS-803 Line Sensor: It offers signal output and after sensing, CDS has three sections to adjust and time can be adjusted from 6~600 sec. by roller.
Sensing Range and Distance:

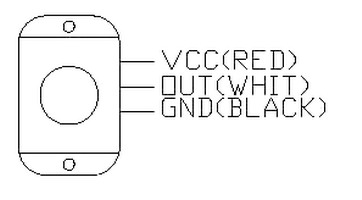

Wiring Diagram:
