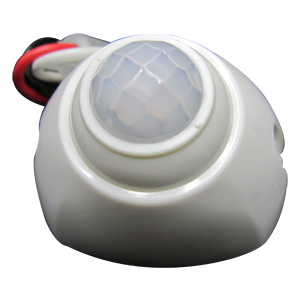

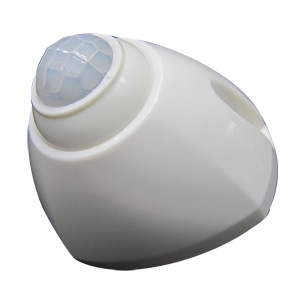

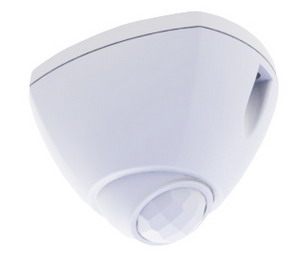

PIR-701 Mini Sensor
Home / Products / PIR Sensors / PIR-701 Mini Sensor
Model No : PIR-701
Functions & Characteristics:
- Mini Motion Sensor - Easy to install and it's suitable for decoration and hidden place.
- Special circuit design can resist spark, surge and noise.
- The Mini Motion Sensor part can be rotated within 360°and you can adjust the direction you want to detect.
- Sensor can be installed on the wall and the ceiling.
- Combine with any lamp, such as incandescent, fluorescent, energy saving and LED lamp.
- Application: Hallway, door gate, corridor, stairs, garage, balcony and basement & etc.
Specification:
Mini Motion Sensor
| Model No. | PIR-701 MINI SENSOR |
|---|---|
| Power Supply | AC100~240V 50~60HZ |
| Max. Load | Max: 200W( Resistance load) |
| Power Consumption | standby: 220V-35mA/110V-17mA |
| Adjusting Angle | Up&Down & R&L: 50° |
| Sensing Angle | R&L:<130°, UP&DOWN:<90°(at 25°C) |
| Sensing Distance | 8m (at 25°C ) |
| Off Delay time | 60 sec. |
| Warm-up Procedure | The lamp will light for about 15 seconds then shut off automatically after energizing. |
| Dimension | 6 x 4.8x 4.8cm |
| Weight | 46g |
| Wiring | 2IN/2OUT |
Instructions( Three adjustable knobs provided as described below):

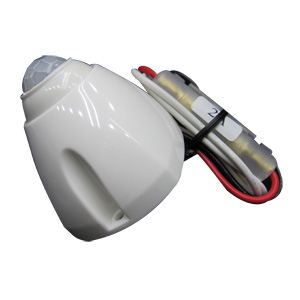

- Please turn off the power, and take off original switch. Connecting AC wires with sensor's wires (red & white) and then connecting the black & white wires with lamp.
- The lamp will light for about 60 seconds then automatically shut off after energized.
- Don't over load.
Sensing Range and Distance:
Wiring Diagram:
Application place:
