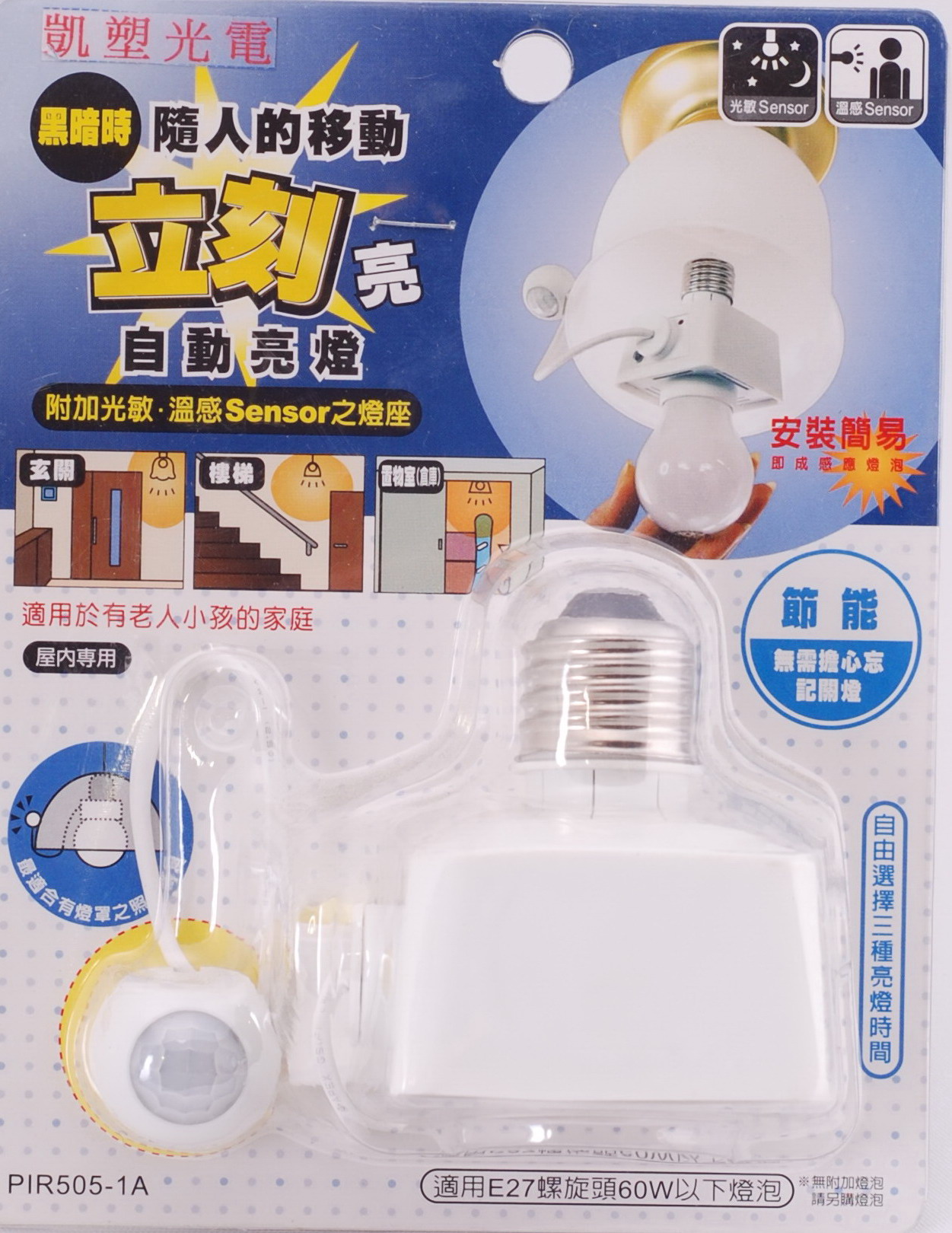

PIR-505A&B Extended-In Light Sensor

Home / Products / PIR Sensors / PIR-505A&B Extended-In Light Sensor

  • PIR-505A&B Extended-In Light Sensor
  • PIR-505A&B Extended-In Light Sensor
  • PIR-505A&B Extended-In Light Sensor
Model No : PIR-505A&B
Functions & Characteristics:
  1. D.I.Y. design - Fire resistant material used and high-temperature resistance.
  2. It has good quality, security, convenience.

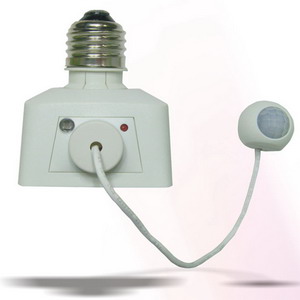

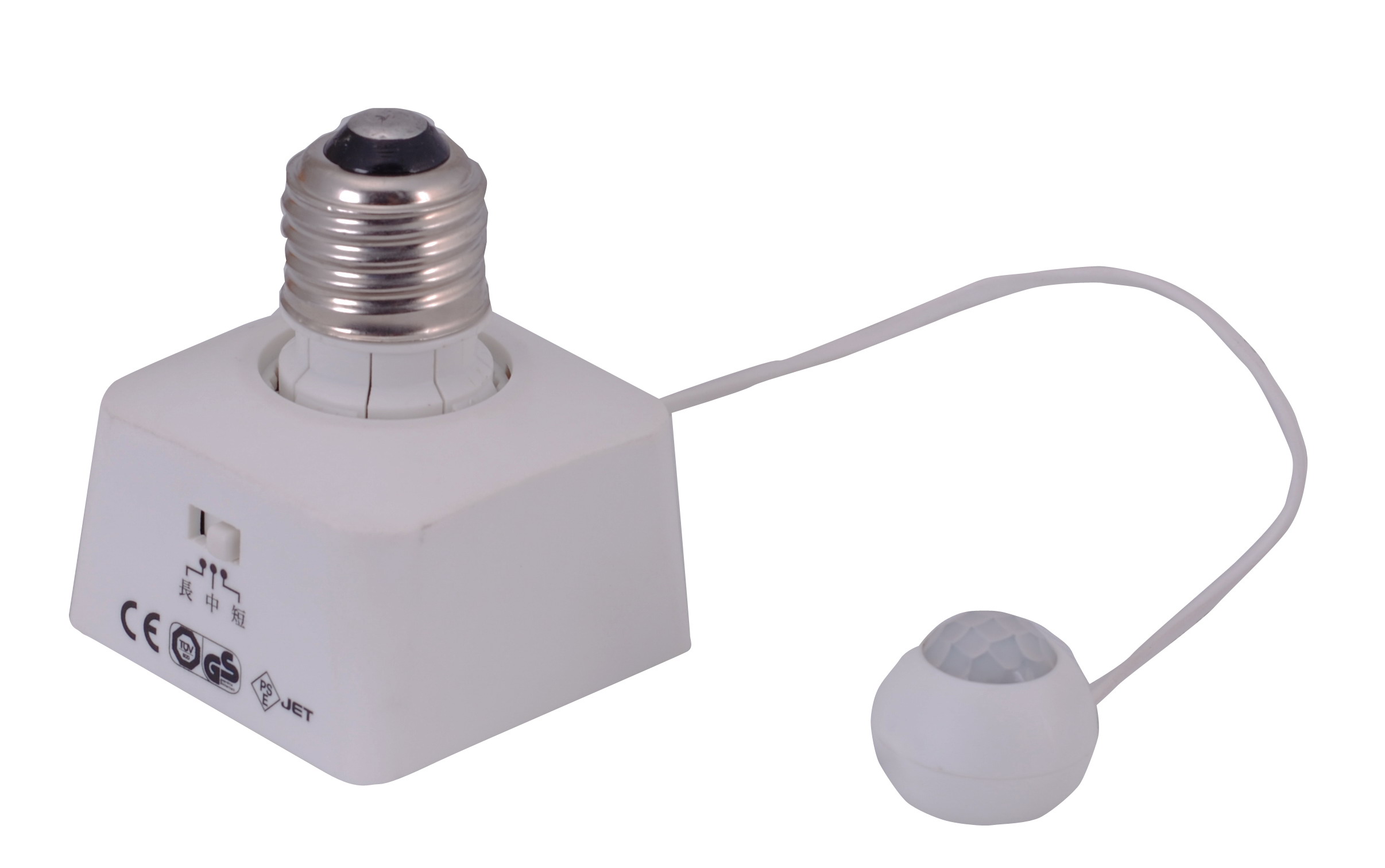

  3. With screw-in lamp, the body of sensor can be turned left or right around 355°, and the extended sensor line can be pulled outside to the sensing place and for free adjustment.
  4. It has two types-A and B
    a. PIR-505A has the”day & light” function because it has CDS (when the daylight is over 30 lux value , the lamp will be off )
    b. PIR-505B has no “day & night”function. The lamp always light up when people arrive no matter day or night.
  5. Certificates: JET, GS/TUV and CE.
  6. Application: Hallway, door gate, corridor, stairs, garage, balcony and basement...etc.
Specification:

Sensor Lights - Extended In Light Sensor

Model  No. PIR-505A&B  Extended-In Light Sensor
Power Supply AC100~240V  50/60HZ
Max. Load Incandescent lamp: 60W , Energy saving lamp: 23W
Power Consumption standby: <1.3 W
Sensing Angle R&L:< 130°, Up & Down: < 90°(at 25°C)
Sensing Distance 8m (at 25°C )
Illumination Under 3LUX: sensor is active , over 30LUX: sensor not active
Off Delay time Short time:10 sec.(night)  Mid. time:90 sec.(night)  Long time:330 sec.(night)
Warm-up Procedure Install in the daytime: the lamp will flash 3 times after energizing.
Install in the nighttime: the lamp will light for about 20 seconds then shut off automatically after the charge.
Dimension 6×6×7.5cm
Weight 85g
Wiring Rotating socket
Instructions( Three adjustable knobs provided as described below):
  1. Turn off the power source, and take off original screw  bulb and then put into PIR-505A&B. Finally, install them into the lamp holder and turn on the power source.
  2. A Type: It has the“day & light” function because it has CDs (when the daylight is over 30 lux value, the lamp will be off )
    B Type: It has no “day & night” function. The lamp always light up when people arrive no matter day or night.
  3. Install in the  daytime: the lamp will flash 3 times after the charge. Install in the  nighttime: the lamp will light for about 20 seconds then automatically shut off after energizing.
  4. Short time:10 sec. (night), Mid. time:90 sec.(night), Long time:330 sec.(night).
Sensing Range and Distance:

Sensing Range and Distance: Sensor Lights

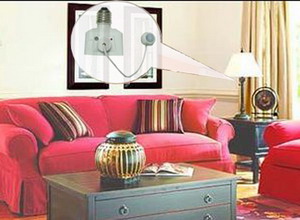

Application place:

Application place: Sensor Lights
