PIR-506 Adjustable Sensor
Home / Products / PIR Sensors / PIR-506 Adjustable Sensor
Model No : PIR-506
Functions & Characteristics:
- D.I.Y. design - Fire resistant material used and high-temperature resistance.
- It has good quality, security, convenience, blaze resistance and flash resistance.
- It has CDs, the sensor will only turn on the lights at night.

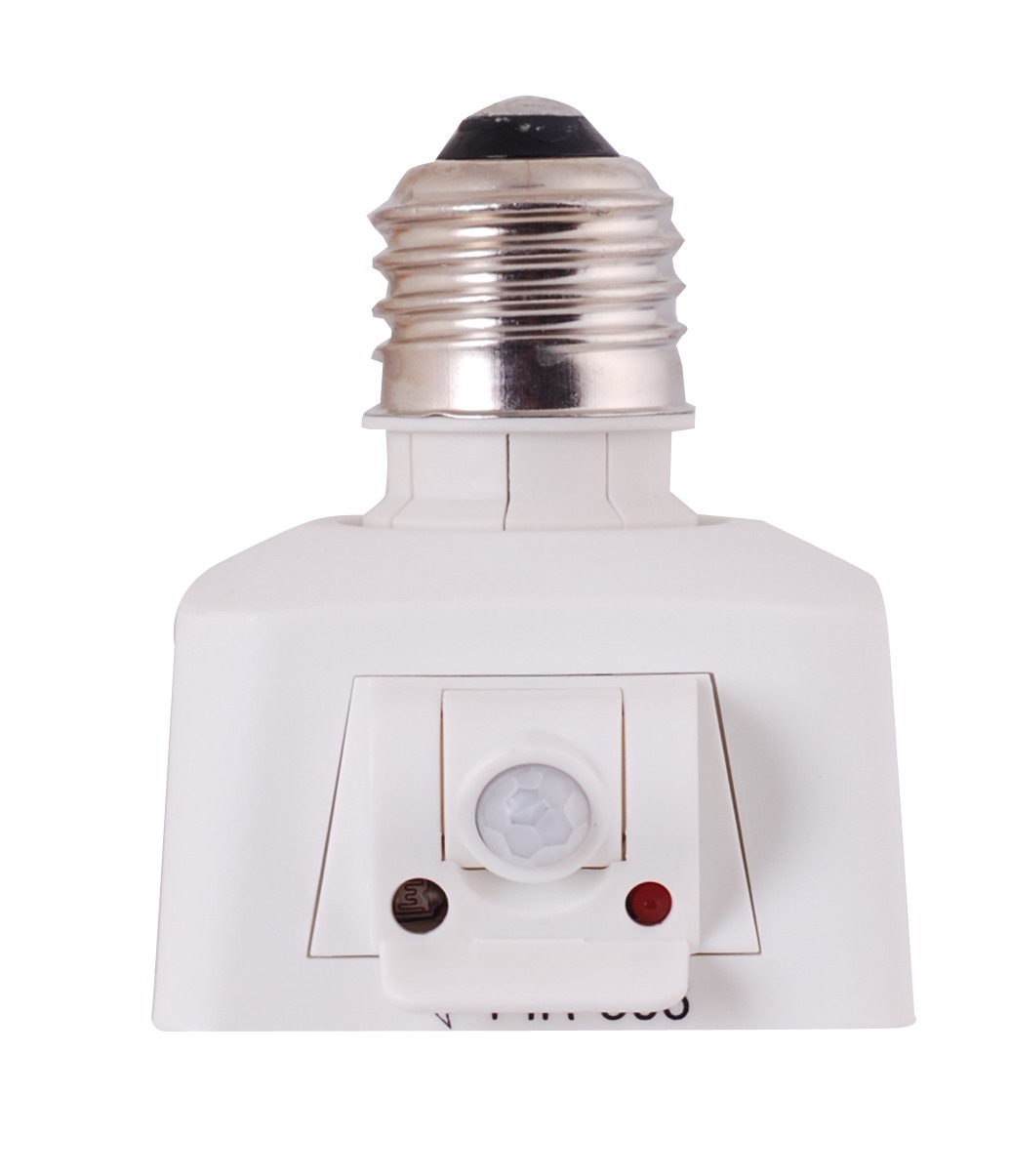

- With screw-in lamp, the body of sensor can be turned left or right around 355°, and up or down around 60° for free adjustment to solve the blind spots that the normal sensor could not reach.
- It is suitable for the E27 rotating lamp holder, such as Incandescent lamp, energy saving lamp and LED lamp.
- Certificates：JET, GS/TUV and CE.
- Adjustable Sensor Application: Hallway, door gate, corridor, stairs, garage, balcony and basement.
Specification:
Adjustable Sensor, Adjustable Light Sensor
| Model No. | PIR-506 Adjustable Sensor |
|---|---|
| Power Supply | AC100~240V 50/60HZ |
| Max. Load | Incandescent lamp: 60W ,Energy saving lamp: 23W |
| Power Consumption | standby: <1.3W |
| Adjusting Angle | R&L:<355°, UP&DOWN:<60° |
| Sensing Angle | R&L:<130°, UP&DOWN:<90°, (at 25°C) |
| Sensing Distance | 8m (at 25°C ) |
| Illumination | Under 3LUX: sensor is active, over 30LUX: sensor not active |
| Off Delay time | Short time：10 sec.(night) Mid. time：90 sec.(night) Long time：330 sec.(night) |
| Warm-up Procedure | Install in the daytime: the lamp will flash 3 times after energizing. Install in the nighttime: the lamp will light for about 20 seconds then automatically shut off after the charge. |
| Dimension | 6×6×7.5cm |
| Weight | 85g |
| Wiring | Rotating socket |

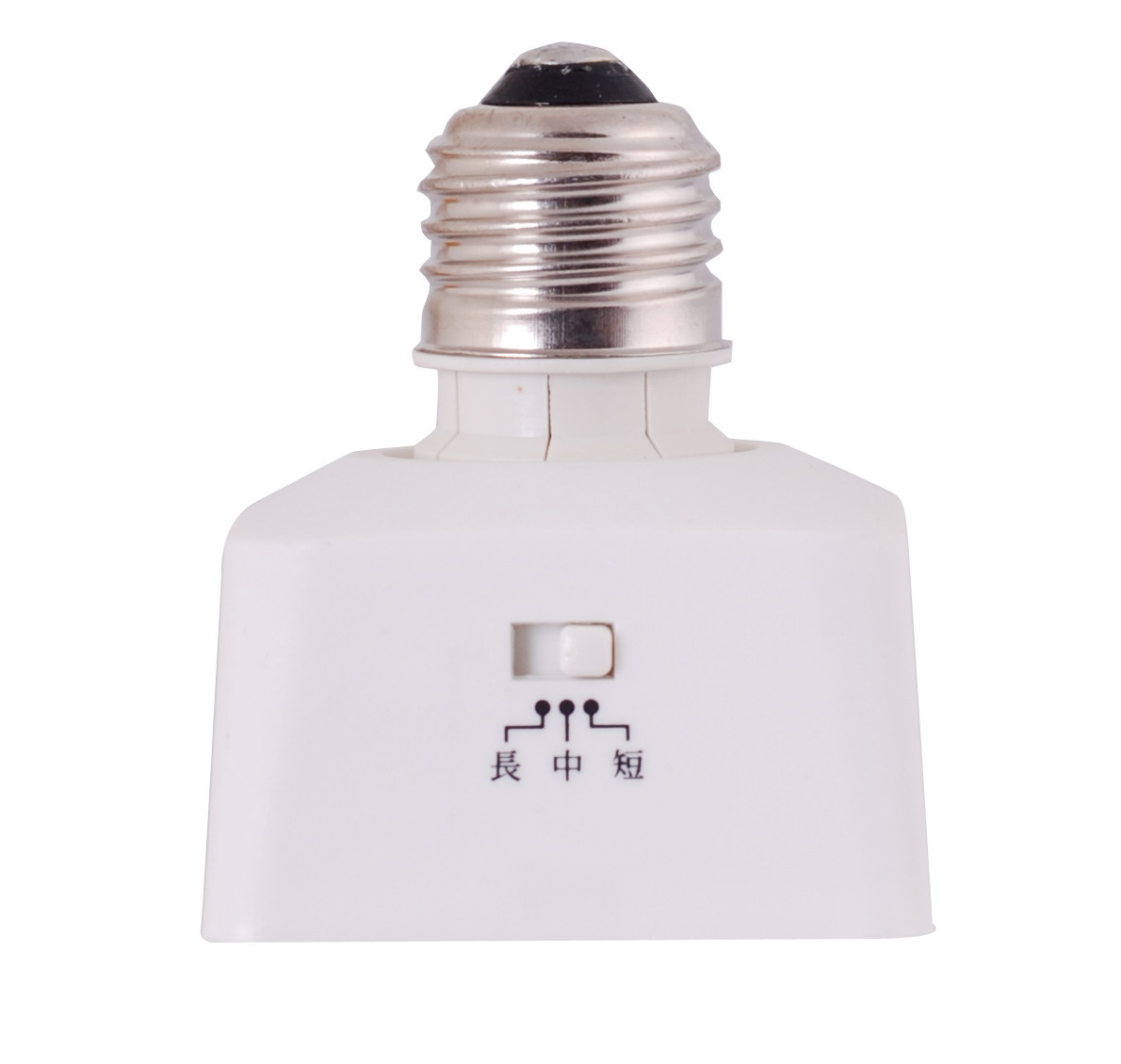

Instructions( Three adjustable knobs provided as described below):
- Turn off the power source, and take off original screw bulb and then put bulb into PIR-506. Finally, install them into the lamp holder and turn on the power source.
- Adjustable light sensor install at daytime: the lamp will flash 3 times after energized. Install at nighttime: the lamp will light for about 20 seconds then automatically shut off after energized .
- After installation, under 3LUX: sensor is active, over 30LUX: sensor not active.
- Off delay time: Short time : 10 sec.(night) Mid. time :90 sec.(night) Long time : 330 sec.(night)and then extinguish.
Sensing Range and Distance:

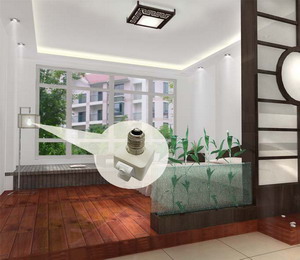

Application place:
