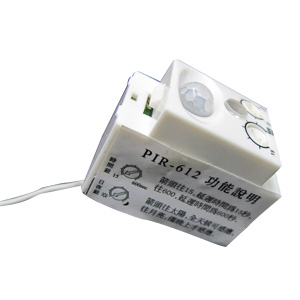

PIR-612 Mini Inserted Sensor
Home / Products / PIR Sensors / PIR-612 Mini Inserted Sensor
Model No : PIR-612
Functions & Characteristics:
- PIR-612 Mini PIR Sensor, easy to install and to take off the original switch.
- Fin in the wall switch and can make the same lamp work.
- Time, day& night can be adjusted.
- It has CDs, the sensor will only turn on the lights at night.
- Special circuit design can combine with any lamp.
- Application: Hallway, door gate, corridor, stairs, garage, balcony and fitting room.
Specification:
Mini PIR Sensor, Mini Light Sensor
| Model No. | PIR-612 Mini Inserted Sensor |
|---|---|
| Power Supply | AC100~240V 50~60HZ |
| Max. Load | Max load: 200W |
| Power Consumption | Standby：3.6mA |
| Sensing Angle | R&L:<130°, UP&DOWN:<90° (at 25°C) |
| Sensing Distance | 8m (at 25°C ) |
| Off Delay time | 15~600 sec.(adjustable) |
| Warm-up Procedure | the lamp will light for about 40-60 seconds then extinguish after the charge. |
| Dimension | 4 *2.2*3.7cm |
| Weight | 36g |
| Weight | 2IN/1OUT |

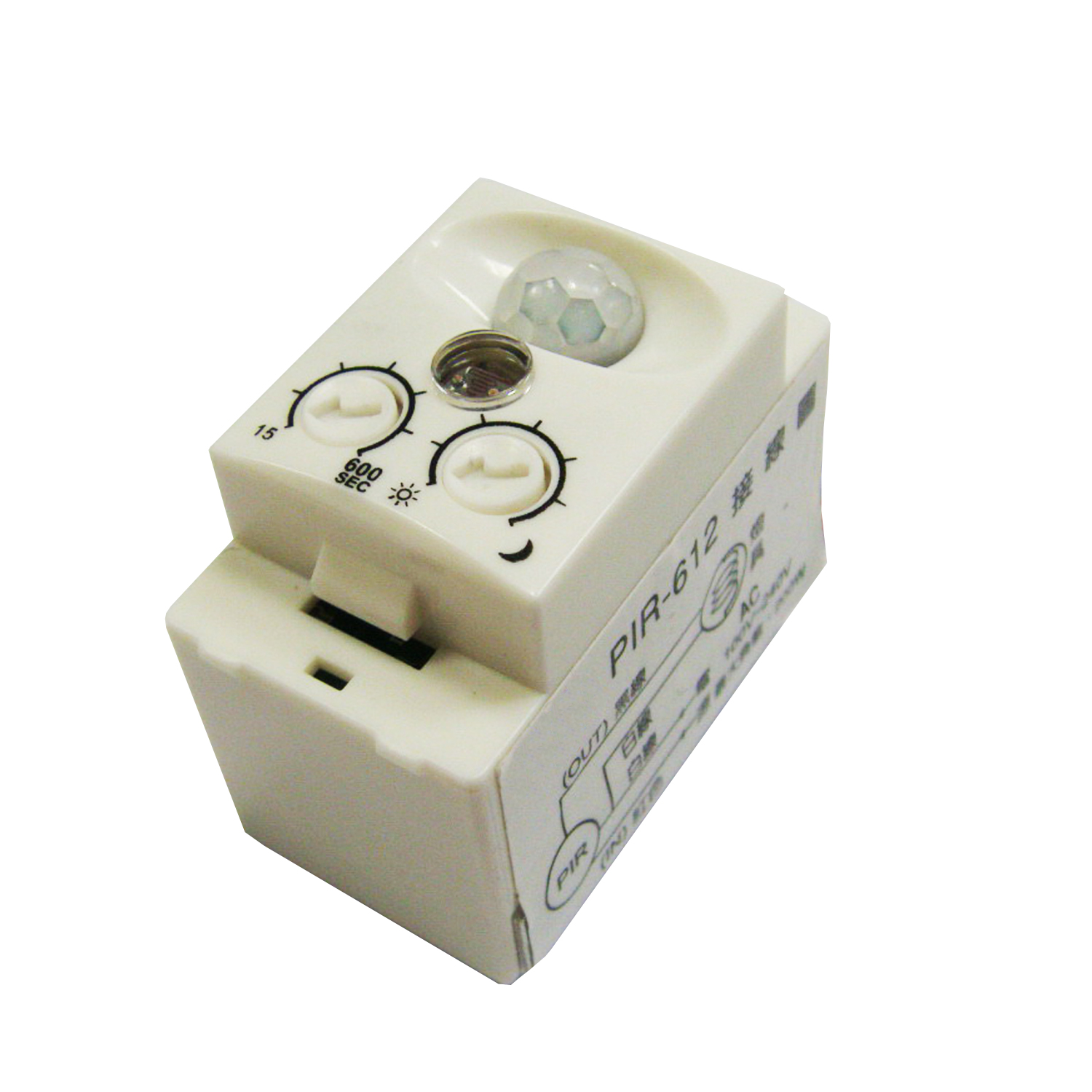

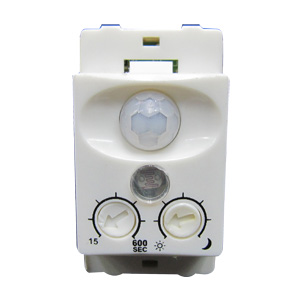

Instructions( Three adjustable knobs provided as described below):
- Please turn off the power, and take off original switch. Then connect AC wires with sensor’s wires (red & white) and finally connect the black & white wires with lamp.
- Light for 60 sec. and start its function after energized.
- Time, day & night can be adjusted.
- Avoid over load.
Sensing Range and Distance:

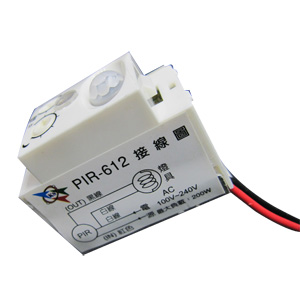

Wiring Diagram:

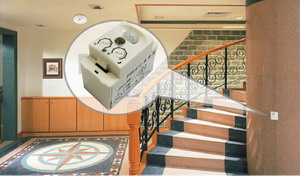

Application place:
