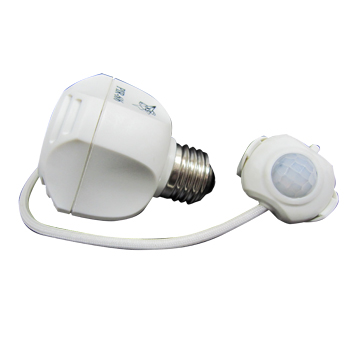

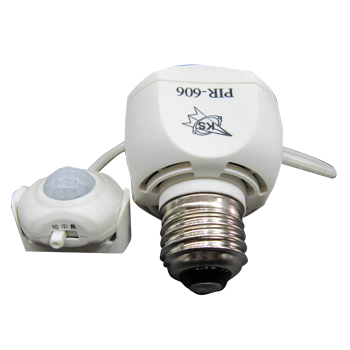

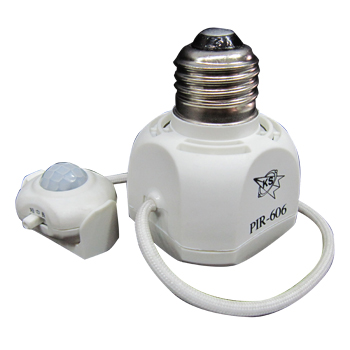

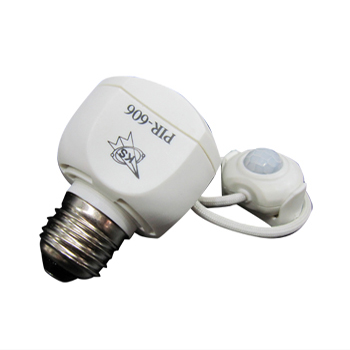

PIR-606 Downlight Lamp Sensor
Home / Products / PIR Sensors / PIR-606 Downlight Lamp Sensor
Model No : PIR-606
Functions & Characteristics:
- Our PIR-606 has the patented design for overheat protection. If the temperature of the downlight is over 100 degree C, the light will be turned off for the safety features. After the temperature of the downlight is reduced to about 40 degree C, the PIR-606 sensor will start its function again.
- D.I.Y. design – Fire resistant material used & it has good quality, security, convenience, blaze and flash resistance.
- It has CDs, the sensor will only turn on the lights at night.
- Our PIR-606 is designed for the application of downlight or lamp shade specially, the sensor cable can be pulled outside the lamp and doesn’t affect the function.
- It is suitable for any E27 screw lamp holder, such as incandescent, energy-saving and LED lamps.
- Application: Hallway, door gate, corridor, stairs, office building, conference hall, basement & etc.
Specification:
| Model No. | PIR-606 Downlight Lamp Sensor |
|---|---|
| Power Supply | AC110/220V 50/60HZ |
| Max. Load | Incandescent lamp: 60W, Energy saving lamp：23W and LED |
| Power Consumption | standby: < 1.3W |
| Sensing Angle | R&L:<130°, UP&DOWN:<90° (at 25°C) |
| Sensing Distance | 8m (at 25°C ) |
| Illumination | Under 3LUX: sensor is active, over 30LUX: sensor not active |
| Off Delay time | 1：10 sec. (night), 2：90 sec. (night), 3：330 sec. (night) |
| Warm-up Procedure | Install in the daytime: the lamp will flash 3 times after the chatge. Install in the nighttime: the lamp will light for about 20 seconds then automatically shut off after energizing. |
| Dimension | 5.6×5×7cm |
| Weight | 86g |
| Wiring | Rotating socket ( Screw-in Pin) |
Instructions( Three adjustable knobs provided as described below):
- First, turn off the power and take off original screw bulb, then put bul into PIR-606. Finally, install them into the lamp holder and pull the sensor line to adjust the sensing angle.
- Install in the daytime: the lamp will flash 3 times after energizing. Install in the nighttime: the lamp will light for about 20 seconds then shut off automatically after the charge.
Sensing Range and Distance:

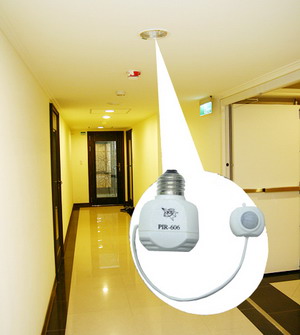

Application place:
