PIR-621 Ceiling Sensor

Home / Products / PIR Sensors / PIR-621 Ceiling Sensor

  • PIR-621 Ceiling Sensor
  • PIR-621 Ceiling Sensor
  • PIR-621 Ceiling Sensor
  • PIR-621 Ceiling Sensor
Model No : PIR-621
Functions & Characteristics:
  1. It can be embeded into the ceiling or switch case. It is suitable to the decoration and has beautiful appearance.
  2. Special circuit design can resist spark, surge and noise.
  3. The sensor part can be rotated within 360°and you can adjust the direction you want to detect.
  4. Time, day & night can be adjusted.
  5. Combine with any lamp, such as Incandescent lamp, Fluorescent lamp, energy-saving lamp and LED lamp.
  6. Application: Hallway, door gate, corridor, stairs, garage, balcony and basement...etc.
Specification:
Model  No. PIR-621 Ceiling Sensor
Power Supply AC100~240V  50/60HZ
Max. Load Incandescent lamp: 600W, Fluorescent lamp: 200W, Energy saving lamp: 240W and LED lamp. Fuse: 3A
Power Consumption standby: 220V-35mA/110V-17mA
Adjusting Angle Up&Down & R&L:50°
Sensing Angle < R&L:130°, UP&DOWN:90°(at 25°C)
Sensing Distance 8m (at 25°C )
Off Delay time 15~600 sec.
Warm-up Procedure Install in the daytime: the lamp will light for 5 sec. after the charge.
Install in the nighttime: the lamp will light for about 12 sec. then shut off automatically after energizing.
Dimension 10.8× 10.8× 6cm
Weight 130g
Wiring 2IN/2OUT

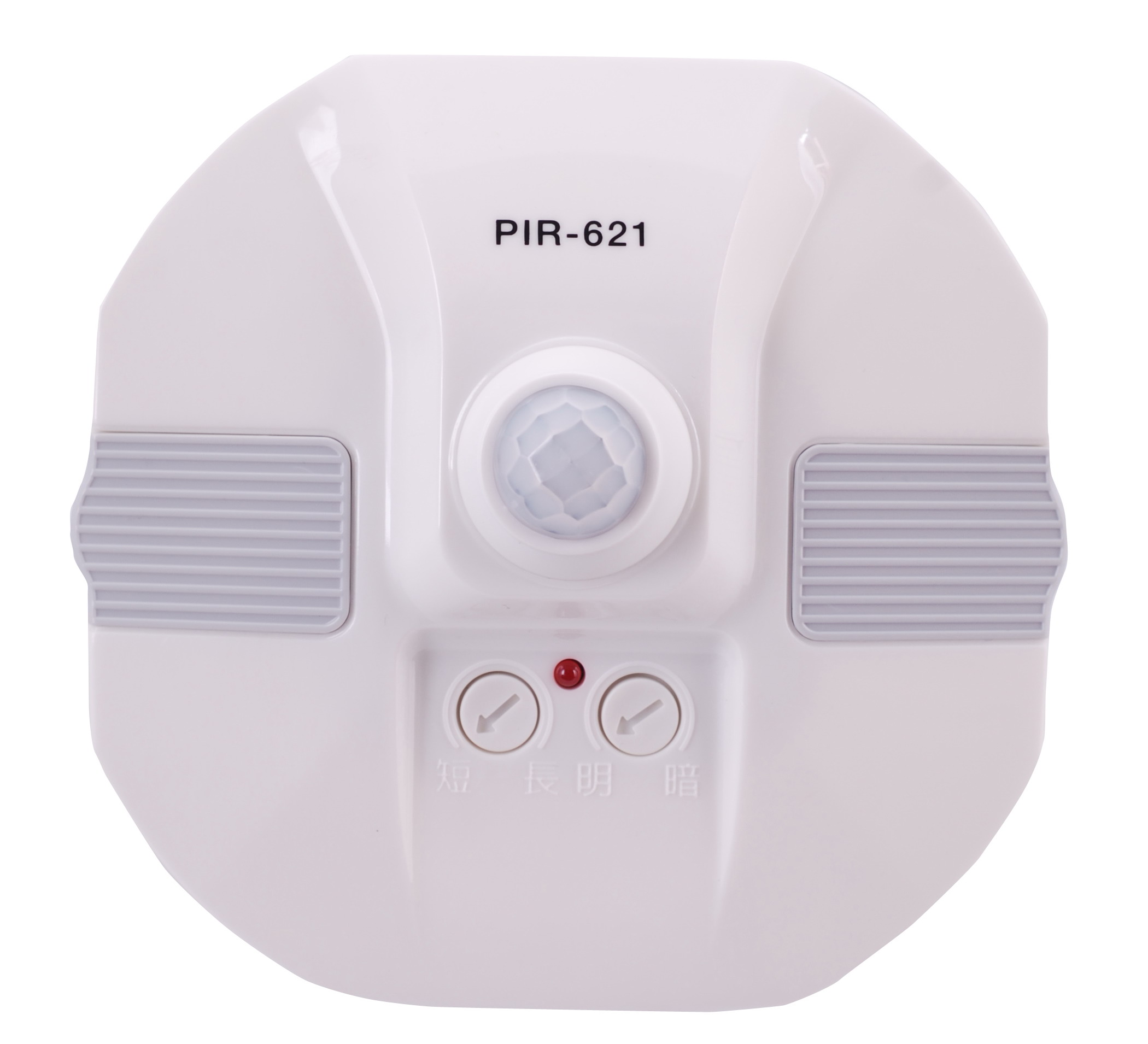

Instructions( Three adjustable knobs provided as described below):

PIR-621 pir sensor suppliersAdjust for day& night.

Day: The sensor operates whenever people.
Night: It only operates at dark surroundings.

PIR-621 pir sensorsAdjust for off delay time.

Short time: about 15 seconds.
Long time: about 600 seconds

Sensing Range and Distance:

PIR-621 pir sensorpir sensors suppliers

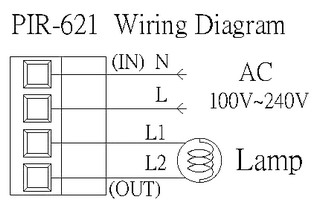

Wiring Diagram:

pir sensor

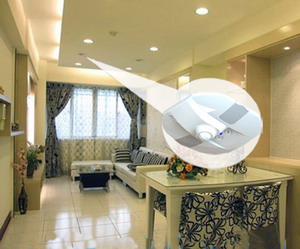

Application place:

pir sensor light
