PIR-615 Hide Extend Mini Sensor

Home / Products / PIR Sensors / PIR-615 Hide Extend Mini Sensor

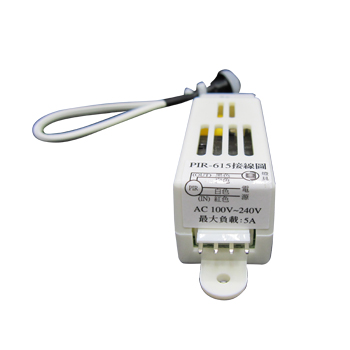

  • PIR-615 Hide Extend Mini Sensor

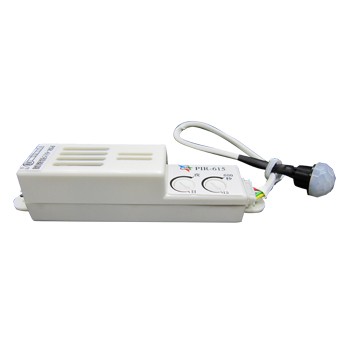

  • PIR-615 Hide Extend Mini Sensor

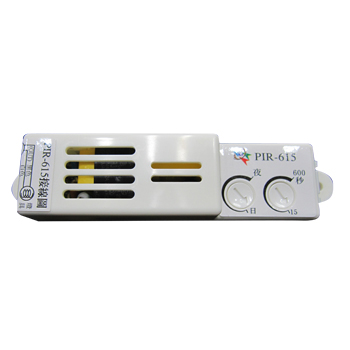

  • PIR-615 Hide Extend Mini Sensor

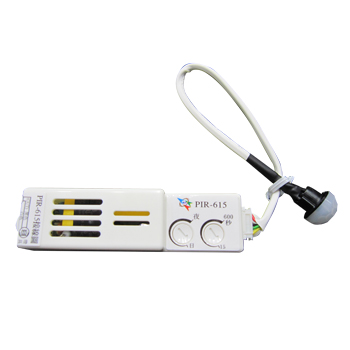

  • PIR-615 Hide Extend Mini Sensor
Model No : PIR-615
Functions & Characteristics:
  1. Suitable for any kinds of lamps and Electronic module can be hidden inside the housing.
  2. The size of sensor is very small, and there are four kinds of sensor you can choose.
    A Type: Round, B Type: Square, C Type: Mushroom, D Type: Bullet.
    Hide Extend Mini Sensor - PIR-615
  3. Special circuit design can resist spark, surge and noise.
  4. Combine with any lamp, such as incandescent, fluorescent, energy-saving and LED lamp.
  5. It has two modes (time delay / day & night) can be set.
  6. Sensor can be installed on the wall or the ceiling fixture.
Specification:
Model  No. PIR-615 Hide Extend Mini Sensor
Power Supply AC100~240V , 50/60HZ
Max. Load Incandescent lamp: 600W, Fluorescent lamp: 200W, Energy saving lamp: 240W and LED lamp. Fuse:2A
Power Consumption standby: 220V-35mA / 110V-17mA
Sensing Angle R & L:<130°, Up & Down: <90° (at 25°C)
Sensing Distance 8m (at 25°C )
Illumination time delay / day & night function and can be adjusted
Off Delay time 15~600 sec.
Warm-up Procedure Install in the daytime: the lamp will light for about 5 seconds after energized.
Install in the nighttime: the lamp will light for about 12 seconds then automatically shut off after the charge.
Dimension 12×2.6×2.8cm
Weight 62g
Wiring 2IN/2OUT
Instructions( Three adjustable knobs provided as described below):

PIR-615 pir sensorAdjust for day & night.

Sun: The sensor operates whenever people.
Moon: It only operates at dark surroundings.

PIR-615 pir sensorsAdjust for the off delay time

15: about 15 seconds. 600: about 600 seconds

Sensing Range and Distance:

pir sensor supplierpir sensor manufacturers

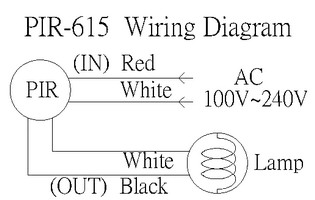

Wiring Diagram:

PIR Light Sensors

Application place:

PIR-615 Hide Extend Mini Sensor Application place
