PIR-611 Ultra-thin Sensor
Home / Products / PIR Sensors / PIR-611 Ultra-thin Sensor
Model No : PIR-611
Functions & Characteristics:
- PIR-611 Embeded Sensor can be embeded into the ceiling or switch case, the installation way is the same as the installation of downlight. It is suitable for the decoration and has beautiful appearance.
- Special circuit design which can resist spark, surge and noise.
- It has two functions (time delay / day & night) and can be set.
- Embedded Sensors can be installed on the wall and the ceiling.
- Combine with any lamp, such as incandescent, fluorescent, energy saving and LED lamp.
- Applicatio: Hallway, door gate, corridor, stairs, garage, balcony and basement...etc.
Specification:
| Model No. | PIR-611 Embeded Sensor |
|---|---|
| Power Supply | AC100~240V 50/60HZ |
| Max. Load | Incandescent lamp: 600W, Fluorescent lamp: 200W, Energy saving lamp: 240W and LED lamp. Fuse: 5A |
| Power Consumption | standby: 220V-35mA/ 110V-17mA |
| Sensing Angle | R&L:<130°, UP&DOWN:<90° (at 25°C) |
| Sensing Distance | 8m (at 25°C ) |
| Off Delay time | 15~600 sec. |
| Warm-up Procedure | Install in the daytime: the lamp will flash 3 times after the charge. Install in the nighttime: the lamp will light for about 30 seconds then automatically shut off after energizing. |
| Dimension | 10.8 ×10.8 ×4.2 cm |
| Weight | 130g |
| Wiring | 2in / 2out |
Instructions( Three adjustable knobs provided as described below):
Adjust for day& night.
Day: The sensor operates whenever you arrive.
Night: It only operates at dark surroundings.
Adjust for off delay time.
Short time: about 15 seconds.
Long time: about 600 seconds
Sensing Range and Distance:

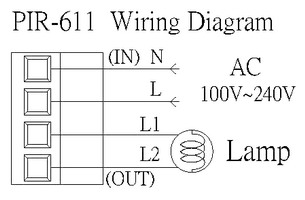

Wiring Diagram:
Application place:
