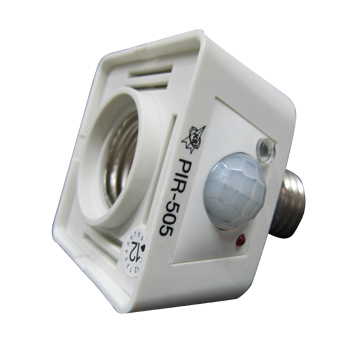

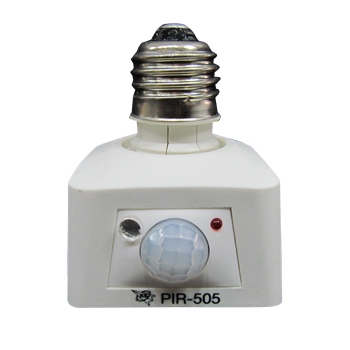

Model No : PIR-505
Functions & Characteristics:
- D.I.Y. design - Fire resistant material used and high temperature resistance.
- It has good quality, security, convenience, blaze and flash resistance.
- It has CDs; the sensor will only turn on the lights at night.With screw-in lamp, the body of sensor can be turned left or right around 355° for adjustment.

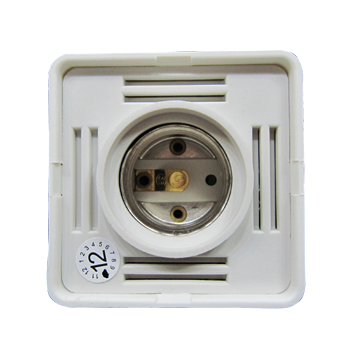

- It is suitable for E27 lamp holder, such as Incandescent lamp, energy saving lamp and LED lampCertificates: JET, GS/TTUV and CE.
- Application: Hallway, door gate, corridor, stairs, garage, balcony and basement...etc.
Specification:
| Model No. | PIR-505 All Direction Screw-In Light Sensor |
|---|---|
| Power Supply | AC100~240V 50/60HZ |
| Max. Load | Incandescent lamp: 60W , Energy saving lamp: 23W |
| Power Consumption | standby: <1.3W |
| Sensing Angle | R&L:<130°, UP&DOWN:<90° (at 25°C) Rotation range about 355° |
| Sensing Distance | 8m (at 25°C ) |
| Illumination | Under 3LUX: sensor is active, over 30LUX: sensor not active |
| Off Delay time | Short time：10 sec.(night) Mid. time：90 sec.(night) Long time：330 sec.(night) |
| Warm-up Procedure | Install in the daytime: the lamp will flash 3 times after energizing. Install in the nighttime: the lamp will light for about 20 seconds then automatically shut off after the charge. |
| Dimension | 6×6×7.5cm |
| Weight | 85g |
| Wiring | Rotating socket ( Screw-in Pin) |
Instructions( Three adjustable knobs provided as described below):
- Turn off the power source, and take off original screw bulb and then put bulb into PIR-505. Then, install them into the lamp holder and turn on the power source.
- Install in the daytime: the lamp will flash 3 times after the charge. Install at nighttime: the lamp will light for about 20 seconds then automatically shut off after energizing.
- When the installation is done, under 3LUX: sensor is active; over 30LUX: sensor not active

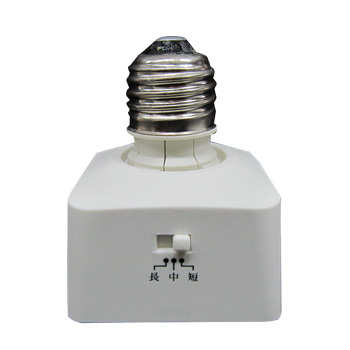

- Off delay time:
Short time：10 sec.(night)
Mid. time：90 sec.(night)
Long time：330 sec.(night)and then extinguish.
Sensing Range and Distance:

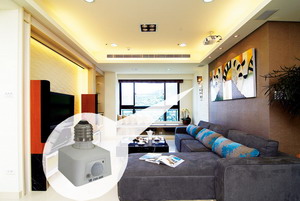

Application place:
