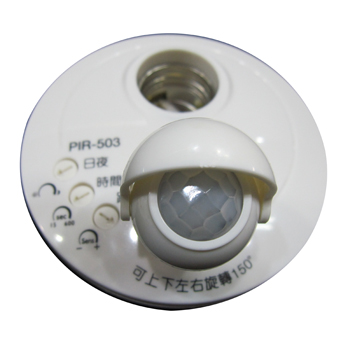

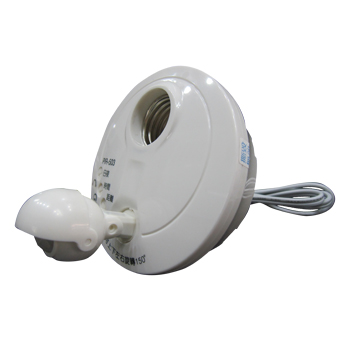

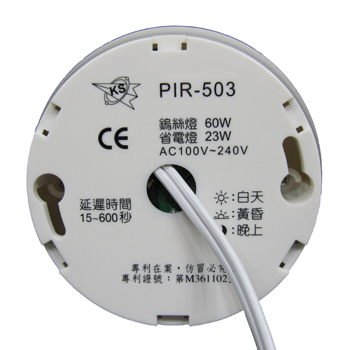

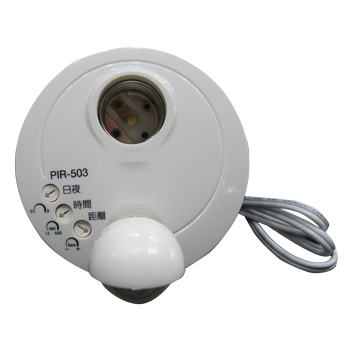

PIR-503 Illuminated Adjustable Sensor

Home / Products / PIR Sensors / PIR-503 Illuminated Adjustable Sensor

  • PIR-503 Illuminated Adjustable Sensor
  • PIR-503 Illuminated Adjustable Sensor
  • PIR-503 Illuminated Adjustable Sensor
  • PIR-503 Illuminated Adjustable Sensor
Model No : PIR-503
Functions & Characteristics:
  1. DIY bulb can be installed directly in the sensor. 360° PIR Sensor is easy to install and only plug the wire into the electric socket.
  2. 360 Degrees PIR: Its special circuit design with auto light feed-up patented design can resist spark, surge and noise. The light will not flash because it’s near to heat source.
  3. The rotative sensor can be adjusted freely and you can adjust the sensing range that you want to detect.
  4. Time, day & night and distance can be adjusted. It can be installed on the wall or the ceiling.
  5. Combine with any lamp, such as Incandescent lamp, Fluorescent lamp, energy saving lamp and LED lamp.
  6. Application: Hallway, door gate, corridor, stairs, garage, balcony and basement...etc.
Specification:



Model  No.  PIR-503  Illuminated Adjustable Sensor
Power Supply AC100V ~ 240V, 50HZ/60HZ
Max. Load Incandescent lamp: 60W, Energy saving lamp: 23W
Power Consumption standby: 220V-35mA/110V-17mA
Adjusting Angle   Up&Down:90°, R&L:160°
Sensing Angle R&L:<130°, UP&DOWN:<90° (at 25°C)
Sensing Distance 8m (at 25°C )
Off Delay time 15~600 sec.
Warm-up Procedure Install in the daytime: the lamp will flash 3 times after the charge.

Install in the nighttime: the lamp will light for about 30 seconds then automatically shut off after energizing.
Dimension 10×10×7cm
Weight 146g
Wiring AC Plug wire
Instructions( Three adjustable knobs provided as described below):

Instructions: 360 Degree PirAdjust for day& night.

Sun: The sensor operates whenever you arrive.
Moon: It only operates at dark surroundings.

Instructions: 360 Degree Pir sensorsAdjust for the off delay time.

15: about 15 seconds.
600: about 600 seconds and than light shut off.

Instructions: 360° Pir SensorAdjust for sensitivity.

Turn left: short sensing distance.
Turn right: long sensing distance.

Sensing Range and Distance:

Sensing Range and Distance: 360° pir, 360 degree pirSensing Range and Distance: 360° pir, 360 degree pir motion sensor

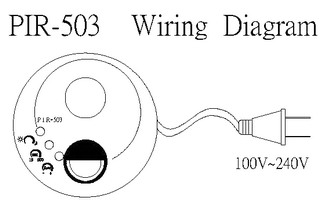

Wiring Diagram:

Wiring Diagram: 360 Degree Pir Sensors

Application place:

Application place: 360 PIR Sensor
