DLW-001 Off-Delay Switch-Universal Type
Home / Products / Delay Switches / DLW-001 Off-Delay Switch-Universal Type

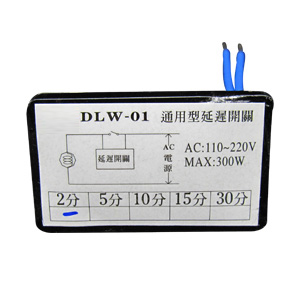

Model No : DLW-01
Functions & Characteristics:
- When you turn off the switch, the light won't shut off right away until time setting works.

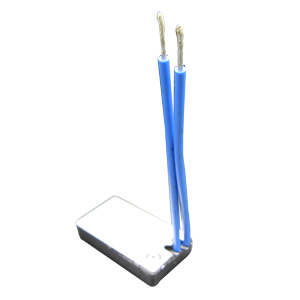

- Easy to install. Only joint 2 wires with original switch
- Convenient to use. With the same operation, only delay lighting of setting time after turn off the switch.
- Small size and the space behind the switch can be loaded.
- Compatibility. Most lamps or electric appliances can install it.
Specification:
Delay Timer Switch
| Model No. | DLW-001 Off-Delay Switch-Universal Type |
|---|---|
| Power Supply | AC110V ~ 220V 50HZ /60HZ |
| Max. Load | 200W |
| Power Consumption | 1A |
| Off Delay time | 2 min.(standard),5,10,15,30 min(customize) |
| Dimension | 4.4×2.6×0.8cm |
| Weight | 16.4g |
| Wiring | 1IN/10UT |
Wiring Diagram:
Application place:
