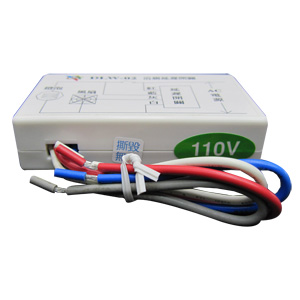

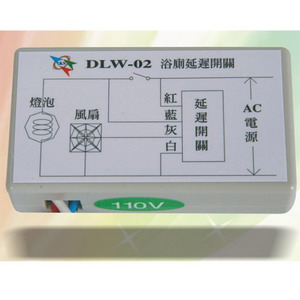

DLW-002 Off-Delay Switch-Ceiling Type

Home / Products / Delay Switches / DLW-002 Off-Delay Switch-Ceiling Type

  • DLW-002 Off-Delay Switch-Ceiling Type
  • DLW-002 Off-Delay Switch-Ceiling Type
Model No : DLW-02
Functions & Characteristics:
  1. When you turn on the delay switches for lighting, the light and electric fan will work at the same time.
  2. When Turn off the same switch, light will be off right away but electric fan will be still running depends on the time you set.
  3. Convenient: it can be installed without changing circuits.
  4. Compatibility: All can be installed no matter which brand of extractor fan.
  5. Water resistance: With the effect of water resistance, will not easy to be damaged by humidity of bath room.
  6. Flexibility: Off-delay time can be adjusted by personal habits. You can set it to 10 seconds, 5 minutes, 10 minutes or 15 minutes.
  7. Application: Bathroom.
Specification:

Delay Switches for Lighting

Model  No. DLW-02 Off-Delay Switch-Ceiling Type.
Power Supply AC110V / 220V    50HZ /60HZ
Max. Load 200W
Power Consumption 2mA
Off Delay time 10 seconds, 5 minutes, 10 minutes and 15 minutes.
Weight 60g
Dimension 9.6×4.8×2.2cm
Wiring 2IN/2OUT
Feature Waterproof
Instructions( Three adjustable knobs provided as described below):
  1. Turn off the power sou
  2. Connecting wires as the wiring diagram. The light wires need to be connected to make the delay function works.
  3. The max loading of extractor fan is 1 horsepower.
  4. Connecting the wires correctly to avoid burnout.

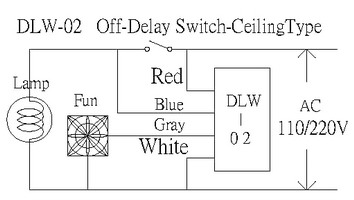

Wiring Diagram:

DLW-02 Delay Switches for Lighting

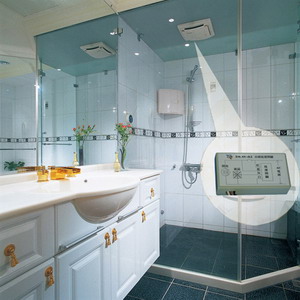

Application place:

DLW-02 Delay Switches for Lighting
