LED Tubes T8 , LED T8 Lamps

Home / Products / LED Energy Saving / LED Tubes T8 , LED T8 Lamps

  • LED Tubes T8 , LED T8 Lamps Manufacturer and Supplier
  • LED Tubes T8 , LED T8 Lamps Manufacturer and Supplier
  • LED Tubes T8 , LED T8 Lamps Manufacturer and Supplier
  • LED Tubes T8 , LED T8 Lamps Manufacturer and Supplier

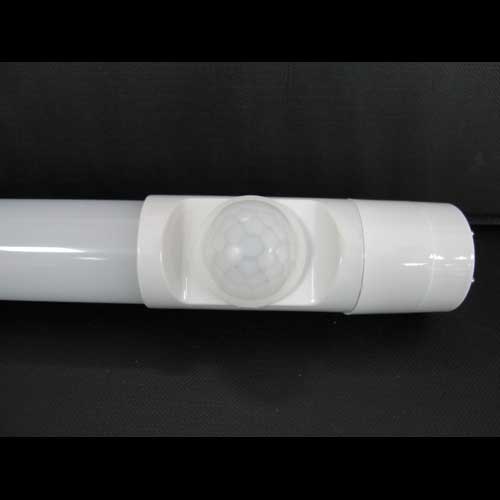

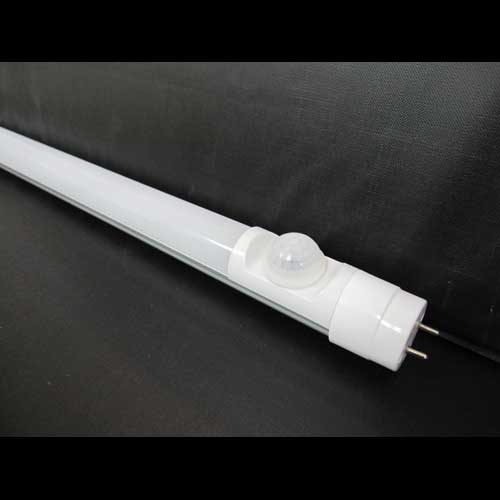

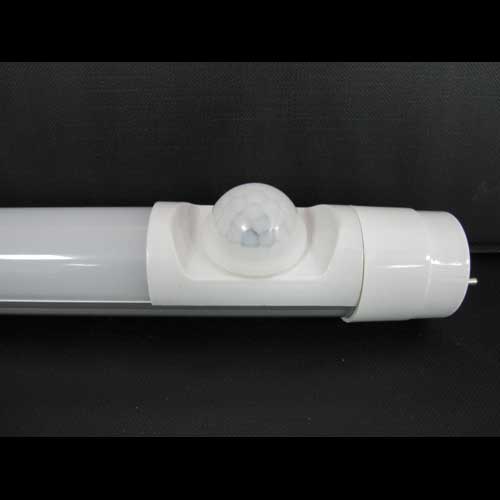

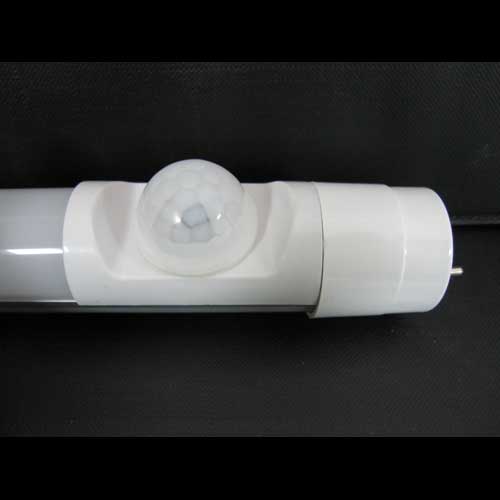

Model No : LED-205S
Functions & Characteristics:

LED T8 Lamps Manufacturer and Supplier

  1. 3014 LED, the light does not have flicker, harmless to the human body, do not injure eyes and Operation life is about 50000 hours.
  2. The material of side is Aluminum Alloy and high light transmittance acrylics.
  3. The lamp is isolated LED electric current designed definitely, high efficiency, long life.
  4. Can match traditional T8 lamp holder.
  5. Good Color Rendering Index (CRI).
  6. Application places: Hallway, door gate, corridor, stairs, garage, balcony and basement & etc.
Specification:
Model  No.LED-205S
Model nameT8 LED tube with sensor luminanceT8 LED tube with sensor luminanceT8 LED tube with sensor luminanceT8 LED tube with sensor luminance
100%25%100%25%
Dimension L580mm L1200mm
Power Supply AC85-265V
Normal Rated Power 9W 9W 18W 18W
Luminous Flux >800LM >1600LM
Color  temperature 6000K-6500K
PF PF>0.93
Working temperature -10°C ~+45°C
Total Luminous  Efficiency >75LM/W
Working Frequency 50/60HZ
Light angle 140 degree
Sensing distance 8m (at 25°C ) 8m (at 25°C ) 8m (at 25°C ) 8m (at 25°C )
Sensing angle R&L:<120°,
UP&DOWN:<90°
Delay time According to customer requirements into 30 seconds, 60 seconds, 120 seconds, 180 seconds
Type Night and all day Micro-light type Night and all day Micro-light type
