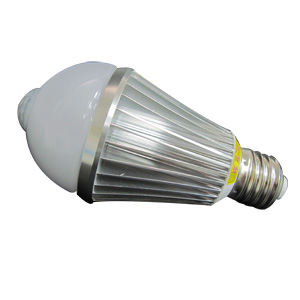

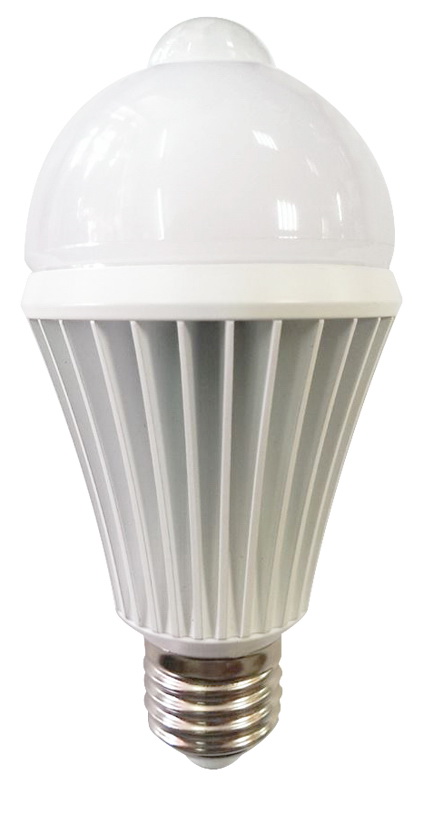

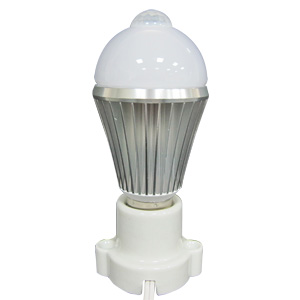

LED-206TS 7W/10W LED Situational Bulb
Home / Products / LED Energy Saving / LED-206TS 7W/10W LED Situational Bulb
Model No : LED-206TS
Functions & Characteristics:
- 5630 LED light, the light does not have flicker, harmless to the human body, do not injure eyes and Operation life is about 30000 hours.
- Good energy saving, long life, high efficiency, the life is 10 times of the traditional fluorescent lamp.
- Good color appearance, three situational functions and two color temperature can meet different needs base on different condition.
- A new type. Can adjust time for LED sensing bulb, replace the traditional fixed-time LED sensing bulb.
- The lamp is isolated LED electric current designed definitely.
- The chassis is steel radiator and high light transmittance acrylics.
- Application places: Hallway, door gate, corridor, stairs, garage, balcony and basement & etc.
Specification:
| Model No. | LED-206TS 7W/ 10W LED SITUATIONAL BULB |
|---|---|
| Power Supply | AC100 ~240V 50/60Hz |
| Luminous Flux | 7W / 500 LM 10W / 750 LM |
| Color temperature | 3200K(WW) / 6200K(CW) |
| PF | >0.8 |
| Work temperature | -10°~ +40° |
| Dimension | Ø60mm×125mm |
| Operation life | 30000 hours |
| Consumption Power | 7 W / 10 W, Standby：0.7 W / 1 W |
| Sensing angle | R&L:<120°, UP&DOWN:<90° (at 25°C) |
| Sensing distance | 8m (at 25°C, height: 4m) |
| Situational features | All day type(Micro-light 10%)：When people arrive, the light gradually to full brightness (100%), it begins to calculate the delay time, when people leave, the light fade to light (10%). |
| Delay time | Can be set as 1,3,5 minutes |
| Warm-up Procedure | 20 seconds |
Setting method :
(1) The factory delay time is 1 minute.
(2) The process of setting delay time.
Power status --- Power switch OFF → ON (0.3SEC.) 3 times and enter setting model A.
- A model. (1 minute setting)
After red light flashes for 5 seconds → Keep red light on → automatically end after 10 sec.
↓ if
In 10 sec. OFF → ON enter B model. - B model. (3 minutes setting)
After red light flashes for 5 seconds → Keep green light on → automatically end after 10 sec.
↓ if
In 10 sec. OFF → ON enter C model. - C model. (5 minutes setting)
After red light flashes for 5 seconds → Keep blue light on → automatically end after 10 sec.
↓ if
In 10 sec. OFF → ON enter A model.

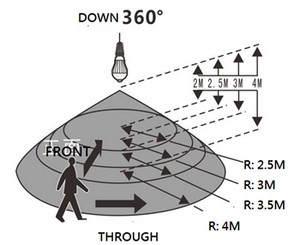

Sensing Range and Distance:
Sensing range (At 25°C)
Application place:
Note（Non-installation place）：
The error lighting（Seal lampshade unavailable）：
