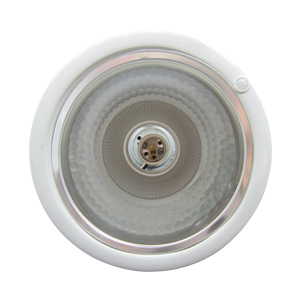

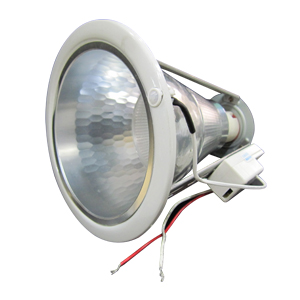

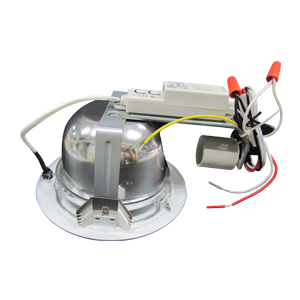

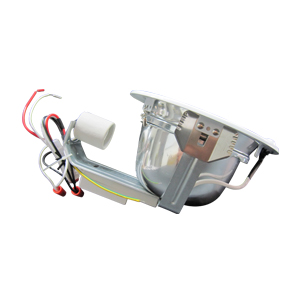

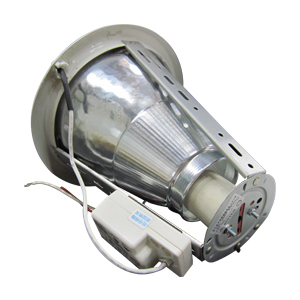

KS-203 15CM Downlight Sensor

Home / Products / Downlight Sensor / KS-203 15CM Downlight Sensor

  • KS-203 15CM Downlight Sensor, Downlight with Sensor
  • KS-203 15CM Downlight Sensor, Downlight with Sensor
  • KS-203 15CM Downlight Sensor, Downlight with Sensor
  • KS-203 15CM Downlight Sensor, Downlight with Sensor
  • KS-203 15CM Downlight Sensor, Downlight with Sensor
  • KS-203 15CM Downlight Sensor, Downlight with Sensor
Model No : KS-203
Functions & Characteristics:
  1. Easy installation, no needs for using voltage converter, with high light reflection, anti-glare and anti-dust glass mask.
  2. With built in sensor and compact design, the lamp lights up automatically when people arrive and turns off when people leave for energy-saving.
  3. Suitable for E27 screw energy-saving lamps, Incandescent lamps and LED lamps.
  4. Due to the compact design with built in sensor, it is easy to fit with different kinds of decoration need.
  5. Application: indoor applications such as living room, restaurant, apparel store, boutiques store and department store.
Specification:
Model  No. KS-203 15CM Downlight with Sensor (Strgight & horizontal type)
Power Supply AC100 ~240V,50HZ/60HZ
Sensor type PIR-615D, PIR-615C
Dimension 17.3x 17.3 x 13.3cm
Weight 274g
Wiring 2IN/2OUT
Instructions( Three adjustable knobs provided as described below):
  1. Measure the hole diameter where be installed. Be careful the size of hole is not too big and also dig a hole behind the sensor for insertion. (Preformed hole)
  2. Connecting AC wires with sensor’s wires and then adjust the off-delay time according to the wiring diagram. (Note: the day& night knob is not available.)
  3. The light doesn’t shoot to the sensor directly to avoid lighting up continuously or flash.
Sensing Range and Distance:

15CM Downlight with Sensor

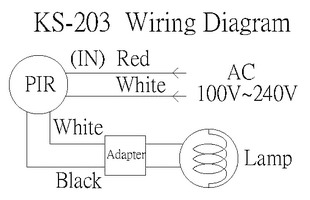

Wiring Diagram:

15CM Downlight with Sensor

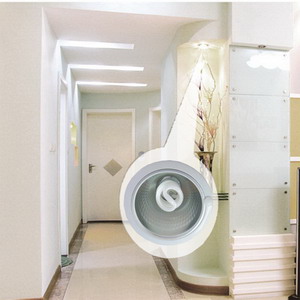

Application place:

15CM Downlight with Sensor
