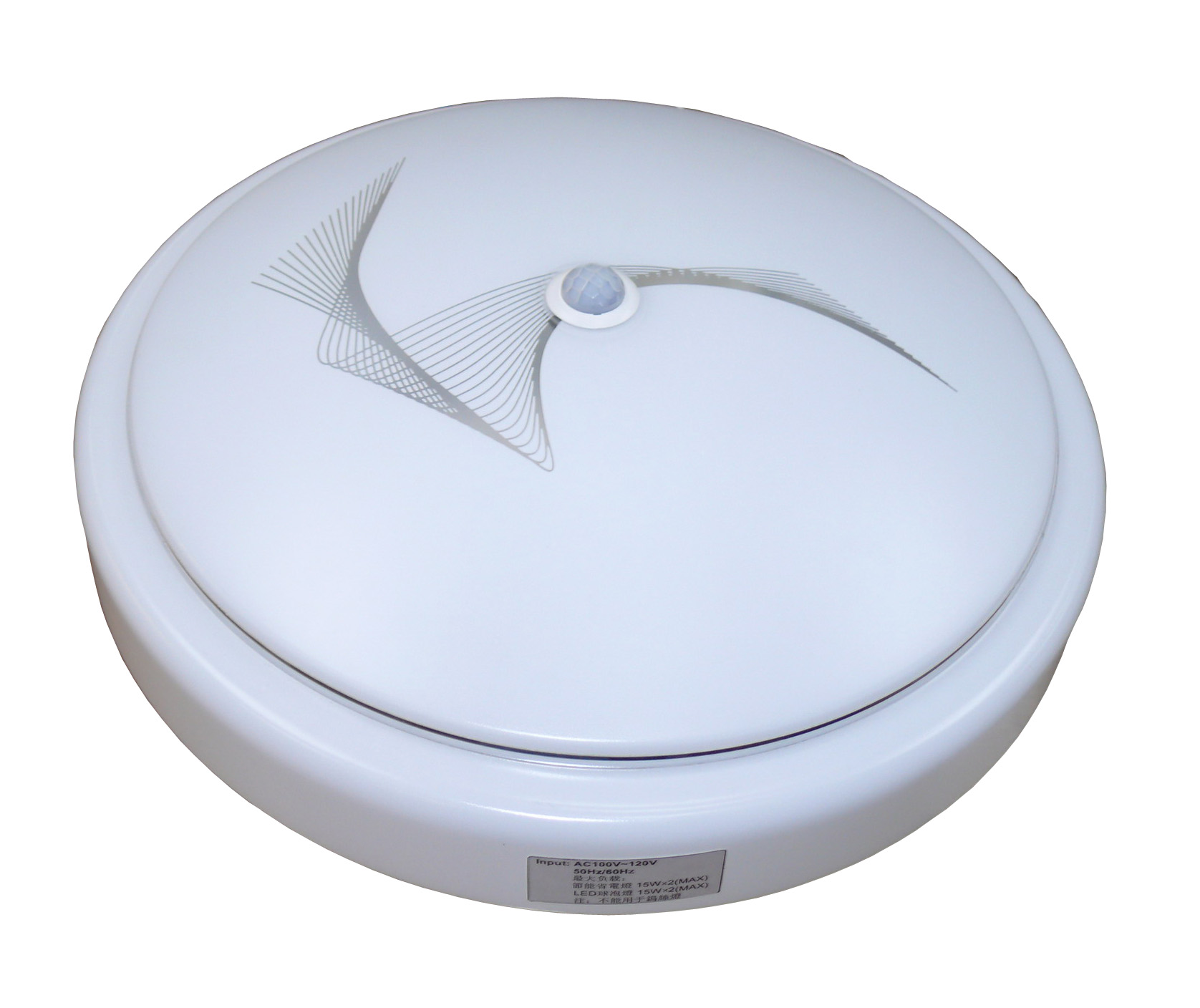

KS-204 Ceiling Lamp with Sensor
Home / Products / Downlight Sensor / KS-204 Ceiling Lamp with Sensor
Model No : KS-204
Functions & Characteristics:
- Ceiling Light Sensor is easy to install, there's no needs to use voltage converter. The sensor includes high light reflection, anti-glare and anti-dust glass mask.
- With built in sensor and compact design, the lamp will light up automatically when people arrive and turn off when people leave for energy-saving.
- Ceiling light sensor suitable for E27 screw energy-saving bulb, Incandescent bulb and LED bulb.
- Due to the compact design with built in sensor, it's easy to fit different kinds of decoration need.
- Ceiling Sensor application: indoor applications such as living room, restaurant, apparel store, boutiques store and department store & etc.
Specification:
Ceiling Light Sensor, Ceiling Motion Sensor
| Model No. | KS-204 Ceiling Lamp with Sensor |
|---|---|
| Power Supply | AC100 ~240V |
| light | E27 Screw energy- saving bulb、Incandescent bulb and LED bulb及LED bulb |
| Sensor type | PIR-615 hiding sensor E type |
| Dimension | Ф300x 100mm |
| Weight | 400g |
| Wiring | 2IN/2OUT |
Instructions( Three adjustable knobs provided as described below):
- Take off the lampshade, and fix the chassis on the ceiling then install the energy saving bulbs.
- Connecting AC wires with sensor’s wires (red & white) and then adjust the off-delay time according to the wiring diagram.
- The light doesn’t shoot to the sensor directly to avoid lighting up continuously or flash.
Sensing Range and Distance:

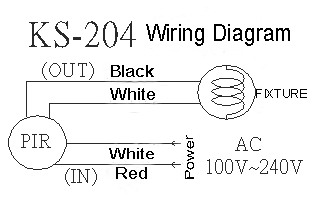

Wiring Diagram:
