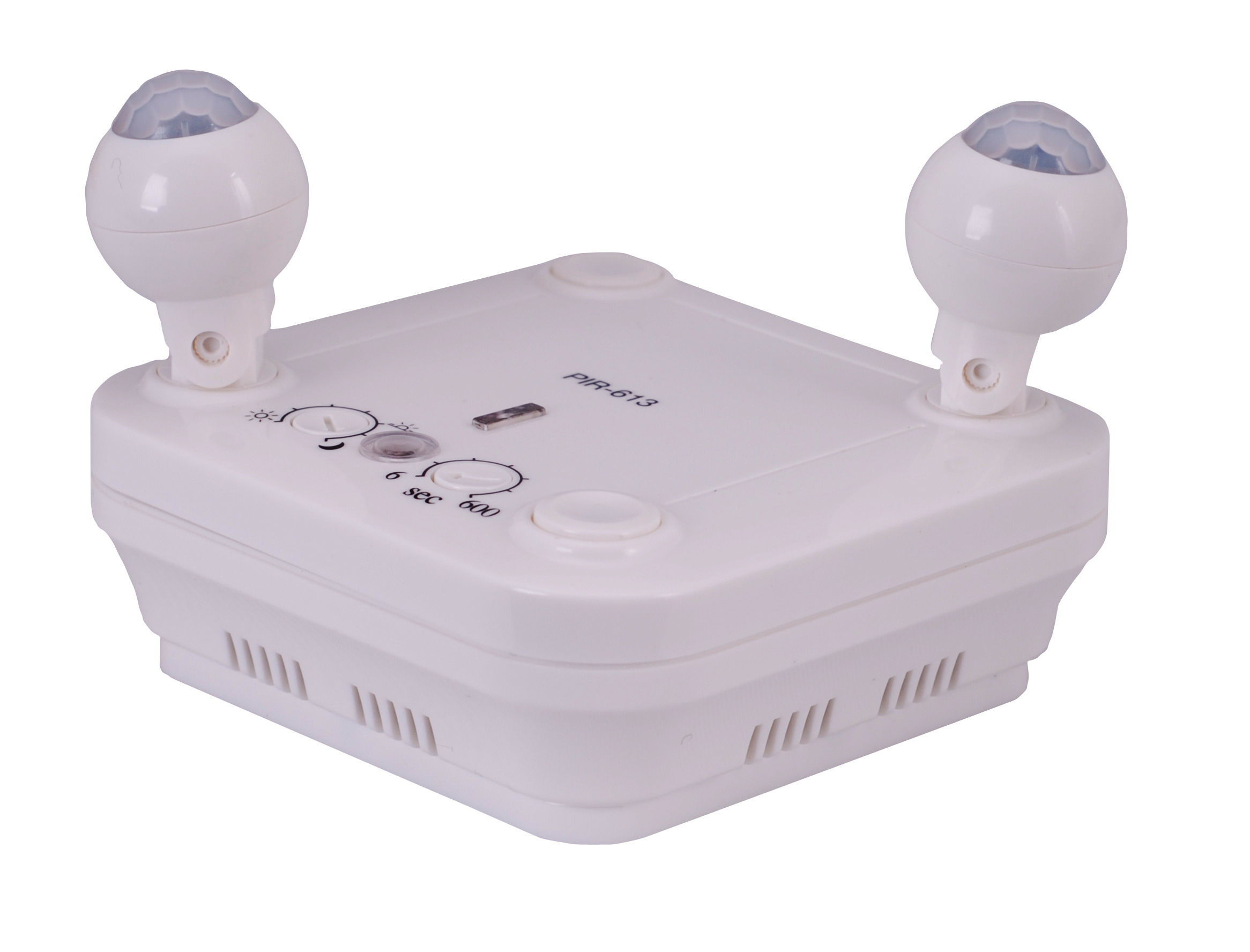

PIR-613 UFO Sensor
Home / Products / PIR Sensors / PIR-613 UFO Sensor
Model No : PIR-613
Functions & Characteristics:
- The first one which has four rotating sensor parts, and it can adjust the sensing direction to solve the blind spots where the normal sensor could not reach. Besides, these 4 sensors work independently with high performance.
- Special circuit design with the auto light feed up patented design can resist spark, surge and noise.
- UFO Sensor has time and day & night functions, and it can be set freely.
- Combine with any lamp, such as Incandescent lamp, Fluorescent lamp, energy-saving lamp and LED lamp.
- UFO Sensor Application: Hallway, door gate, corridor, stairs, garage, balcony and basement.
Specification:
| Model No. | PIR-613 UFO Sensor |
|---|---|
| Power Supply | AC100~240V 50/60HZ |
| Max. Load | Incandescent lamp: 600W, Fluorescent lamp: 200W, Energy saving lamp: 240W and LED lamp. Fuse: 3A |
| Power Consumption | standby :220V-10mA, 110V-5mA |
| Adjusting Angle | R & L: 150°, Up & Down: 90° |
| Sensing Angle | R & L:< 130°, Up & Down: < 90° (at 25°C) |
| Sensing Distance | 8m (at 25°C ) |
| Environmental control | time and day & night functions |
| Off Delay time | 6~600 sec. |
| Warm-up Procedure | Install in the daytime: the lamp will flash 3 times after energized. Install in the nighttime: the lamp will light for about 30 seconds then shut off automatically after the charge. |
| Dimension | 9.6× 9.6× 6.2cm |
| Weight | 165g |
| Wiring | 2IN/2OUT |

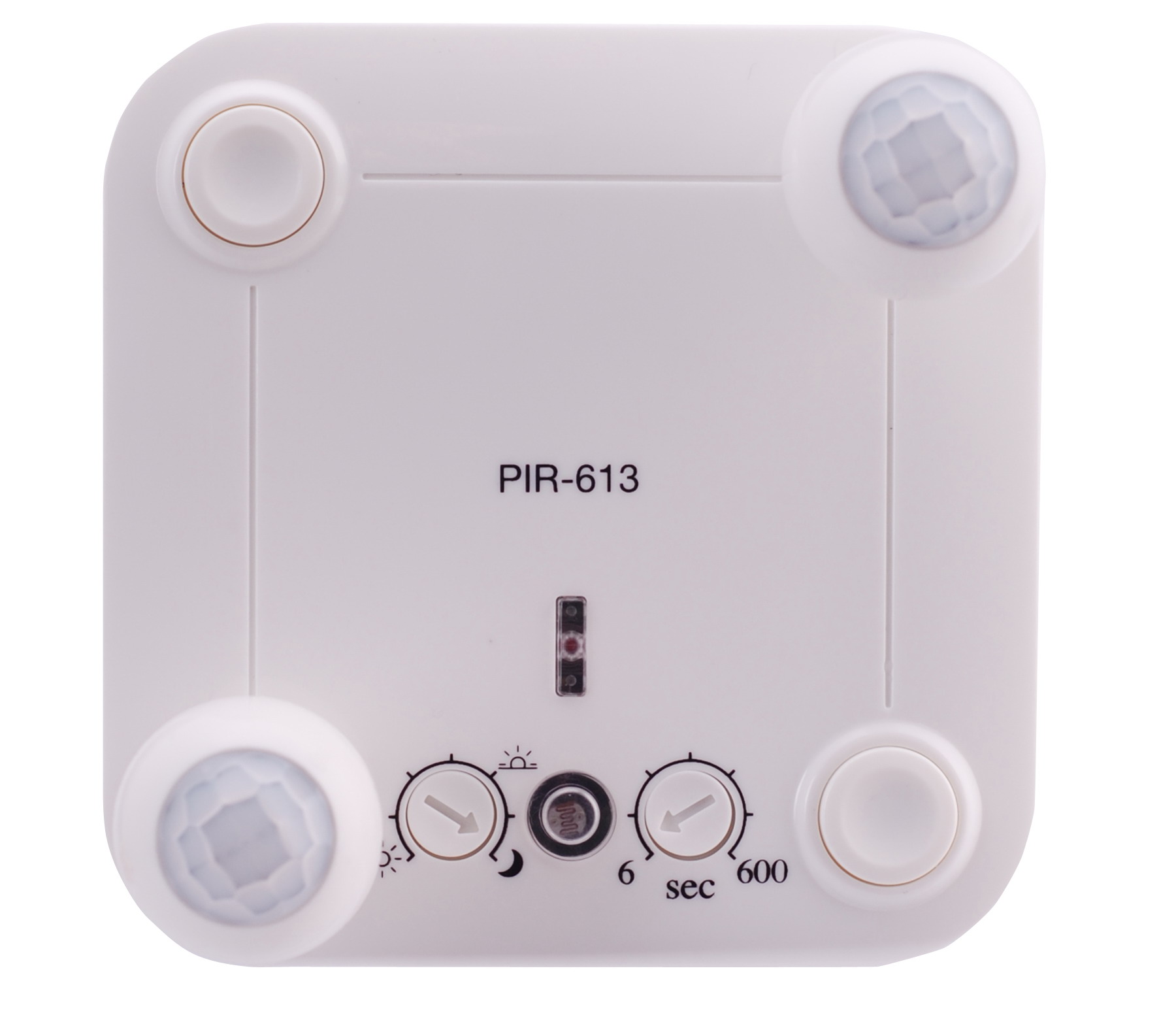

Instructions( Three adjustable knobs provided as described below):
Adjust for day& night.
Sun: The sensor operates whenever people arrive.
Moon: It only operates at dark surroundings.
Adjust for off delay time.
6: about 6 seconds. 600: about 600 seconds
Sensing Range and Distance:

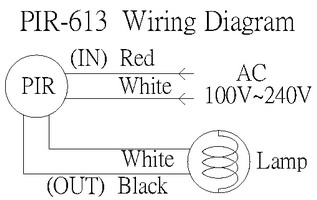

Wiring Diagram:

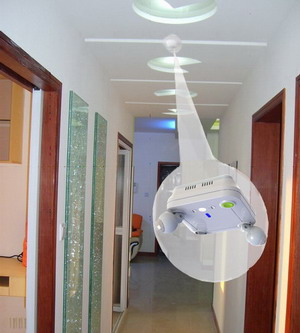

Application place:
