Home / Products / LED Lighting Display Test Box / LED Lighting Display Test Box EPB68-15P
Model No :
Functions & Characteristics:
- Perfect test functions: a collection of power，power factor, voltage, current, annual electricity consumption and electricity in use, Divided into A, B two areas, the clear display of test data simultaneously; built-DC-12V 3A power supply, switchable test DC voltage, current, power , and the annual electricity consumption; good multi-purpose machine usage.

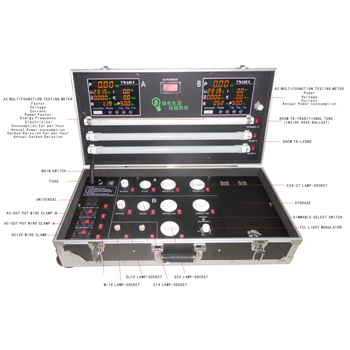

- Lampholder range: equipped with MR16, GU10, E14, E27, G24, T8 traditional tube, LED tube and external clamp, universal socket.
- Contrast features: Two testing instruments A、 B to correspond with test area A and B; different lamps can be lighted simultaneously in different test areas, while testing to achieve the effect of contrast parameters.
- Dimming Function: Dimming engines and dimmer switch, dimmer switch has two functions: DIMMBALE and NON-DIMMABLE if appropriated DIMMBALE gear, the next panel B zone all dimmable lamps can be dimming show test products, if the product without dimming, then appropriated NON-DIMMBALE (under normal circumstances without dimming products are in the state).
- Full Voltage（AC 85-265 V）

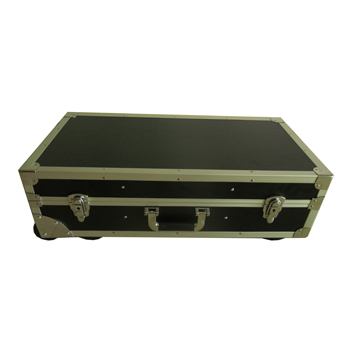

- Mobility function: Portable Carton, mobile and flexible, easy to carry out, there is a base to protect the box.
Specification:
| Working Voltage | AC85~265V | Operating Frequency | 45~65Hz |
|---|---|---|---|
| Temperature | 0~40℃ | Humidity | ≤90%RH |
| Dimension | 690x 340X200MM | Internal Dimension | 680 x330MM |
| Weight | 10Kg | Exterior way | Trolley |
Instructions( Three adjustable knobs provided as described below):
