LED Lighting Display Test Box EPB36-6P
Home / Products / LED Lighting Display Test Box / LED Lighting Display Test Box EPB36-6P
Model No :
Functions & Characteristics:
- Perfect test functions: a collection of power,power factor, voltage, current, annual electricity consumption and electricity in use, the clear display of test data simultaneously; built-DC-12V 3A power supply, switchable test DC voltage, current, power , and the annual electricity consumption; good multi-purpose machine usage
- Lampholder range: equipped with MR16, GU10, E14, E27, G24, and external clamp, universal socket
- Dimming Function: Dimming knob and dimmer switch, dimmer switch has two stalls per: DIMMBALE and NON-DIMMABLE, if turn to DIMMBALE position, all AC lamps and dimming display clip can test products, If the product without dimming, then turn to NON-DIMMBALE position (under normal circumstances without dimming products)
- Full Voltage(AC110V,220V,DC12V)
- Storage Function: Product has a storage space for the power cord, extension cords, fuses and other accessories as well as a number of small objects
- Product upscale generous: the use of the product as a whole suitcase structure, beautiful; test table with 6 data, 5 、6 inch digital display, mechanical buttons, with large areas of black lenses, not only the instrument display more intuitive and more comprehensive, easier and more convenient to operate, and appear to be more upscale
- External test function: to extend through the clamp and universal socket. You can extend the line to test and compare the external display LED lamps and traditional lamps (must be connected to a rectifier) through the external

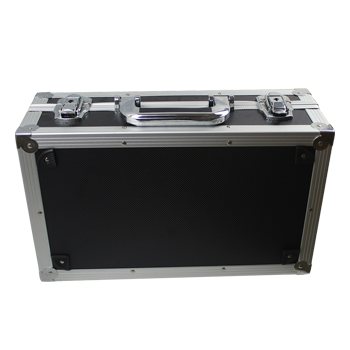

- Mobility function: Portable Carton, mobile and flexible, easy to carry out, there is a base to protect the box.

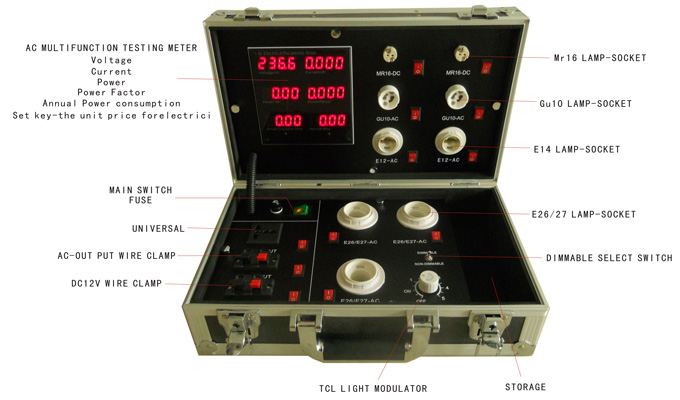

Instructions( Three adjustable knobs provided as described below):
